TartyBikes : Echo Lite SL 2011 (With BB and Bashplate)

- Improving upon the original Echo Lite 2011 frame, the Echo Lite SL 2011 gives a lighter alternative!
- Constructed using double butted tubing on the top and down tubes to help reduce weight in the centre of the tube, whilst still keeping more material at the ends to improve weld strength.

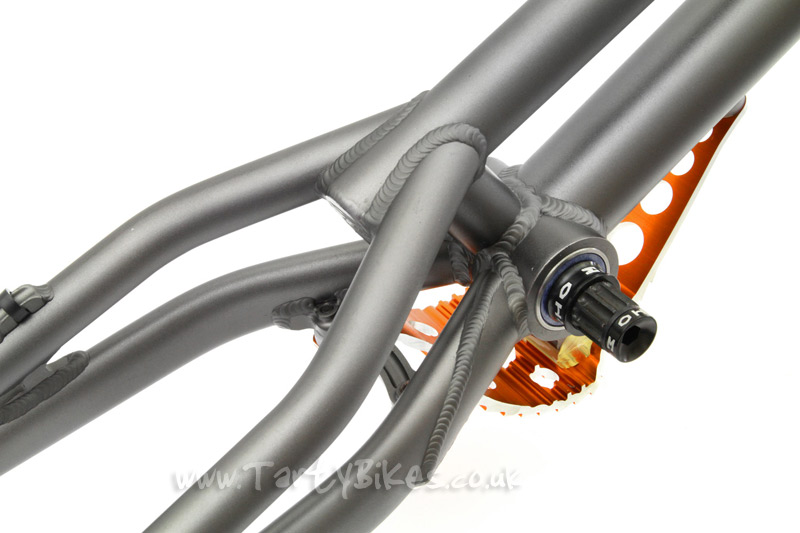

- Features Echo's 'Spanish' BB system, which uses a large press-fit bearing - this gives a longer BB life, whilst still using a strong M15 ISIS spindle. BB is supplied with the frame, including Echo SL Alloy Crank Bolts!

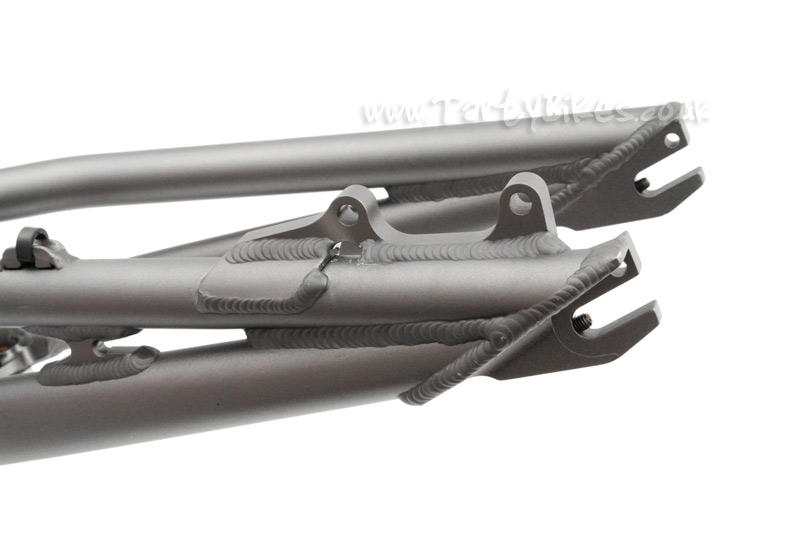

- Neat, CNC machined horizontal dropouts spaced at 116mm feature a low-profile integrated tensioner design, as seen on the previous Czar 24" frame.
- Beefy IS disc mount is reinforced to help make the frame as strong as possible.
- Standard head tube (105mm long) has a large hole machined out to reduce weight.

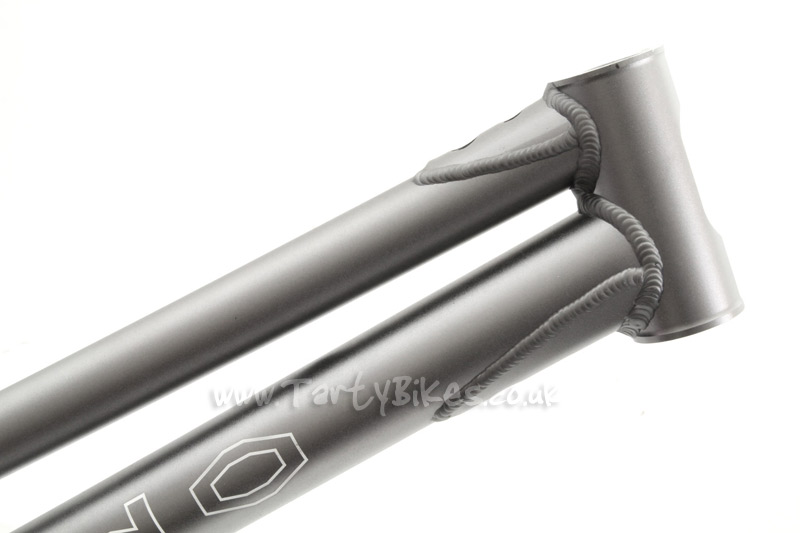

- Top and down tube gussets at the head tube direct stress away from the ends of the tubes, improving frame life.

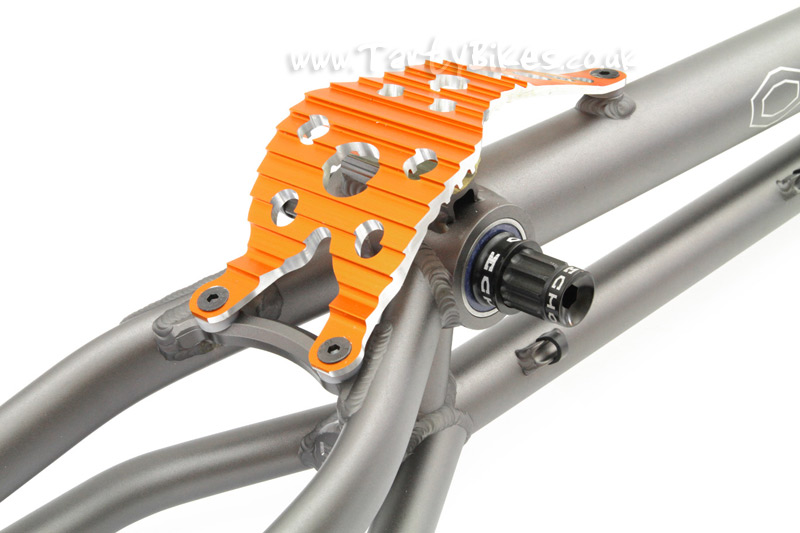

- Available in anodised grey with stylish laser-etched logos, with orange Echo SL Bashplate.
- Weight: 1.334kg (Without BB and bashplate), 1.722kg (With steel BB and supplied bashplate).

Geometry (When measured with Echo Urban fork, sold separately):

This frame comes with a 6 month warranty covering manufacturing and materials defects. Due to the nature of butted tubing it is more likely to dent in the thinner central area of the tubing. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any warranty claim.
