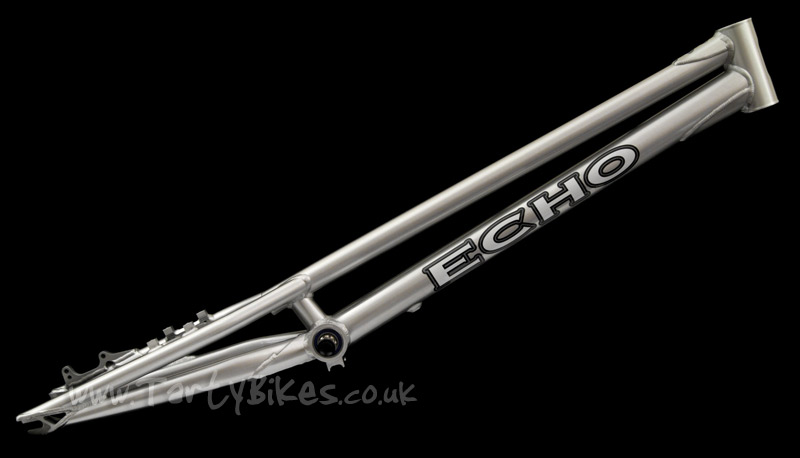

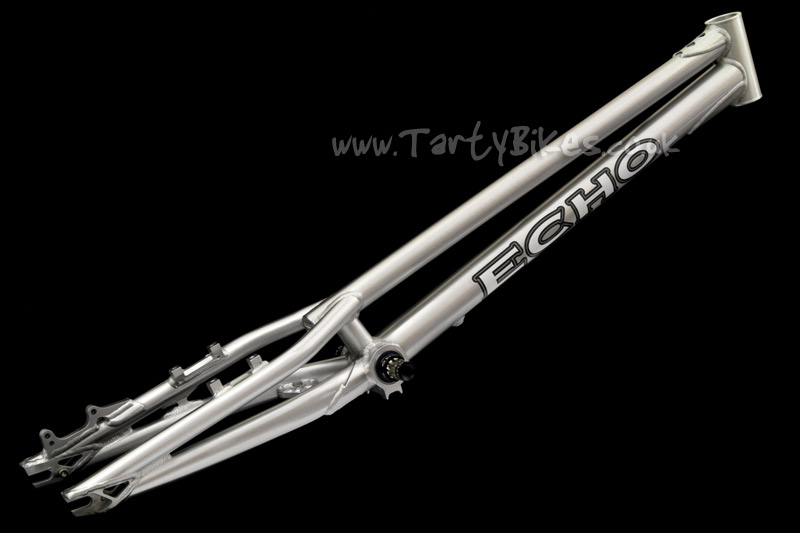

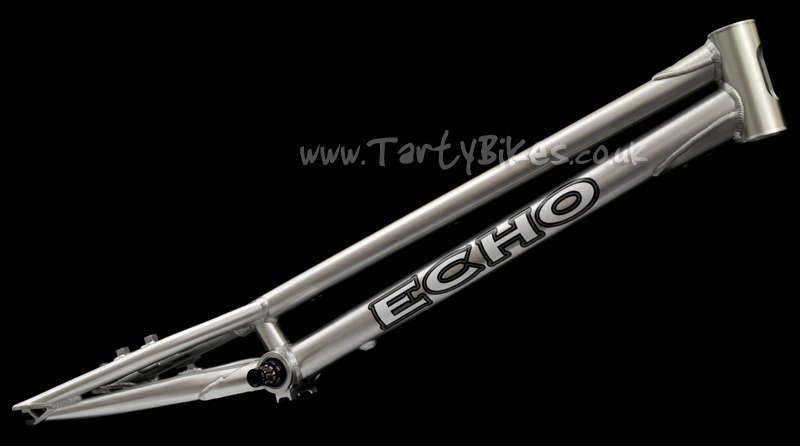

- Updated for 2011, the new Echo Lite frame.

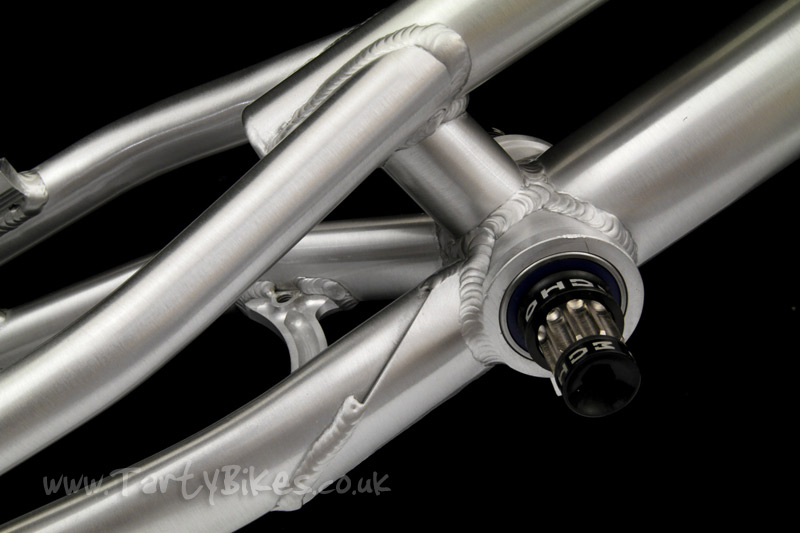

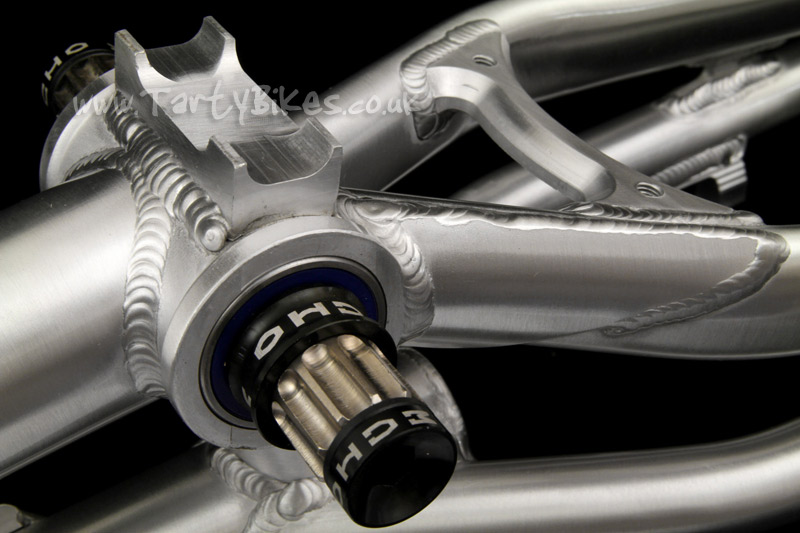

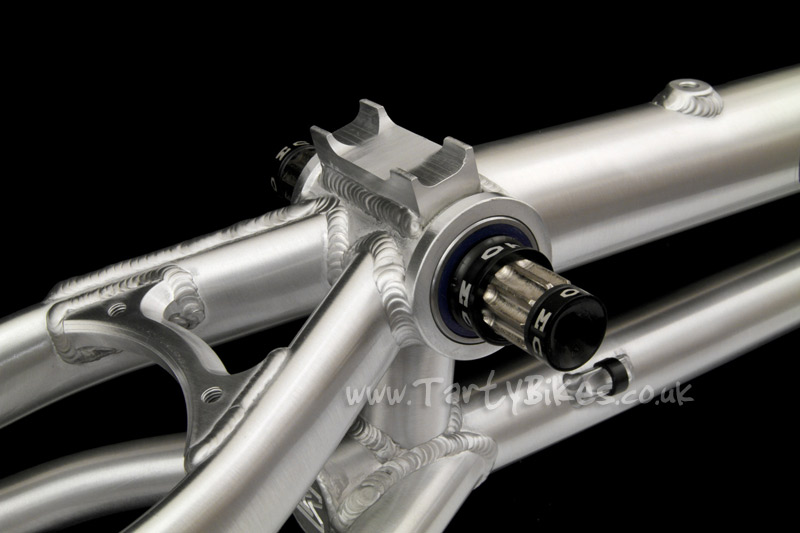

- Features Echo's 'Spanish' BB system, which uses a large press-fit bearing - this gives a longer BB life, whilst still using a strong M15 ISIS spindle. BB is supplied with the frame!
- Neat, CNC machined horizontal dropouts spaced at 116mm offer a larger weld area for the chain and seat stays, giving a stiffer, stronger join.
- Standard head tube (105mm long) has a large hole machined out to reduce weight.
- Top and down tube gussets at the head tube direct stress away from the ends of the tubes, improving frame life.
- Available with dedicated 4-bolt mounts and a reinforced IS disc mount, or Disc Only, giving you the option to run whichever type of brake you choose.
- Supplied in brushed silver only.
- Available with or without bashplate fitted.
- Weight: 1.448kg (Without BB), 1.708kg (With steel BB).
Geometry (Measured with 2012 Echo Urban Fork)
- Features Echo's 'Spanish' BB system, which uses a large press-fit bearing - this gives a longer BB life, whilst still using a strong M15 ISIS spindle. BB is supplied with the frame!
- Neat, CNC machined horizontal dropouts spaced at 116mm offer a larger weld area for the chain and seat stays, giving a stiffer, stronger join.
- Standard head tube (105mm long) has a large hole machined out to reduce weight.

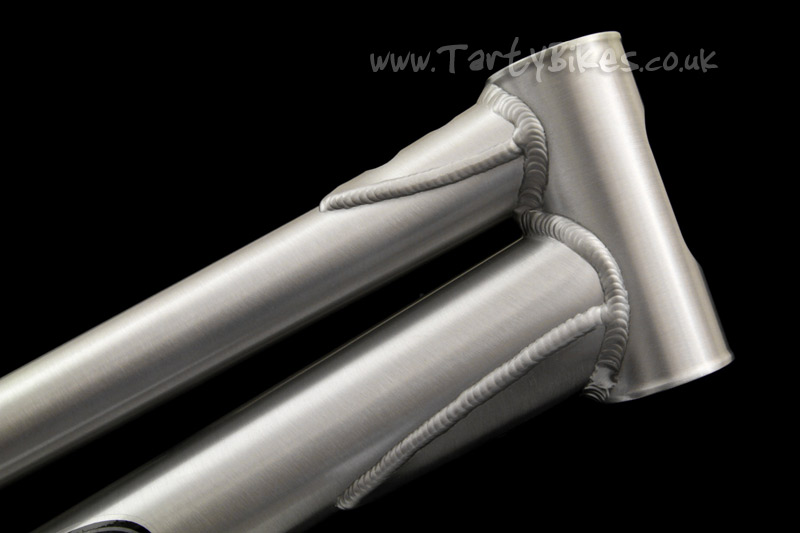

- Top and down tube gussets at the head tube direct stress away from the ends of the tubes, improving frame life.
- Available with dedicated 4-bolt mounts and a reinforced IS disc mount, or Disc Only, giving you the option to run whichever type of brake you choose.
- Supplied in brushed silver only.
- Available with or without bashplate fitted.
- Weight: 1.448kg (Without BB), 1.708kg (With steel BB).
Geometry (Measured with 2012 Echo Urban Fork)
Wheelbase: 1020mm
Chainstay Length: 350mm
BB Rise: 80mm
Head Angle: 72 degrees
Centre of BB shell to top centre of head tube: 600mm
Trialtech Race Platform
£21.28
Trialtech Sport Forged
From £21.28 to £42.55
Save up to 12%
Neon Bow Headset 2010
From £25.00 to £29.79
Save up to 16%
Echo SL 108
£51.06
Trialtech Sport 20''
From £83.33 to £101.28
Save up to 18%
Trialtech Sport Forged
£29.79
Try-All Expert ISIS
From £16.67 to £34.04
Echo SL Headset
£34.04
Needs more space from the chain
Reply from TartyBikes on 29/03/2012
Hi Luke - Clearance does seem to be quite tight on the Lite frame, although we've found that if you use a bashring (or freewheel spacer if you'd prefer to just use a bashplate) then clearance is often alright. To try and get a little more room between your chain and the seat stay you can also run a 3/32" chain like the KMC or Trialtech Z610HX. I hope you enjoy the frame.
