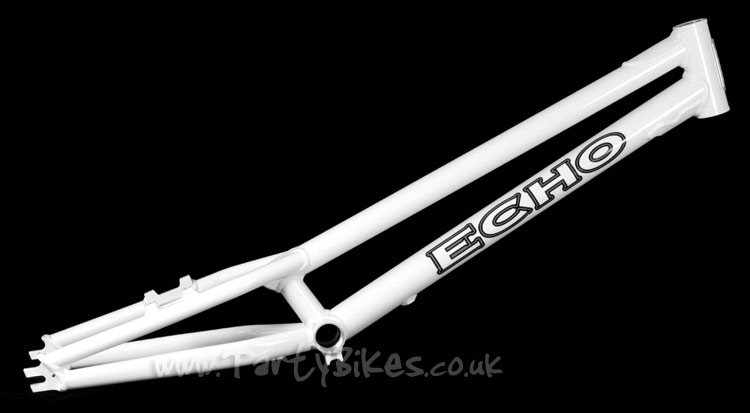

- Updated once again, Echo's Lite frame is based heavily around the popular 2003 Team frame.
- Full 6061-T6 aluminium construction keeps the cost right down while still maintaining good strength.
- Silk brushed silver or gloss white finish looks classy, and helps resist scuffs and scratches.

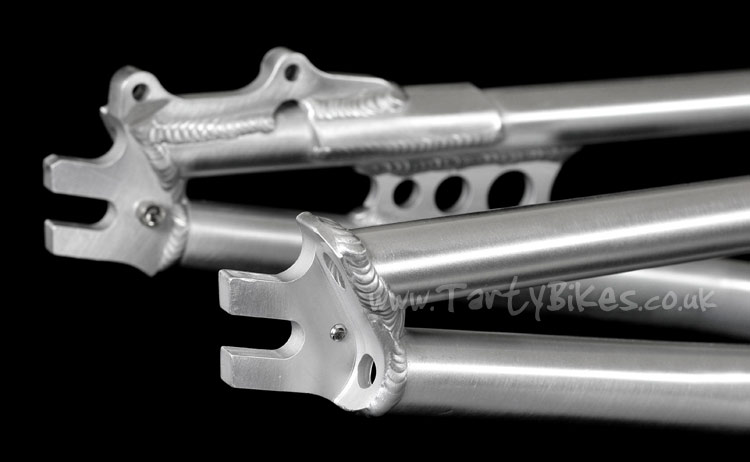

- CNC Machined dropouts help stiffen the frame and provide large weld areas for the tubes.

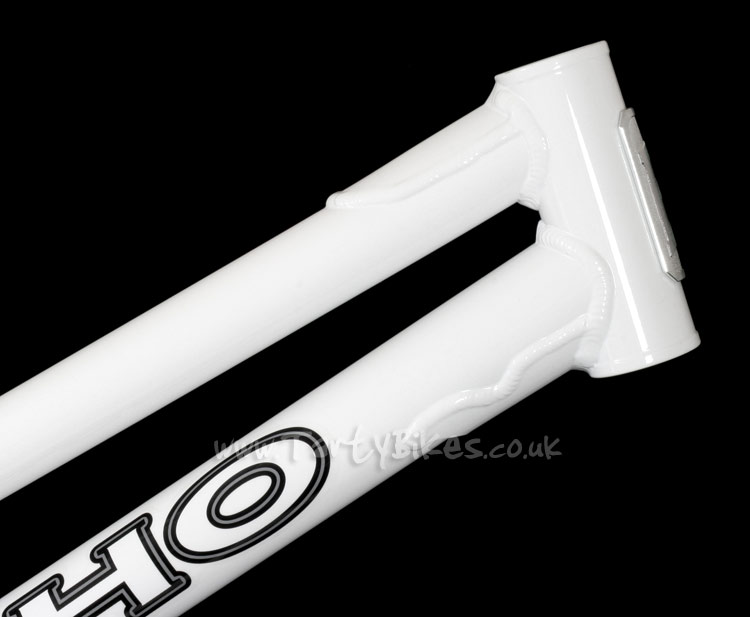

- Top and down tube gussets at the head tube direct stress away from the ends of the tubes, improving frame life.

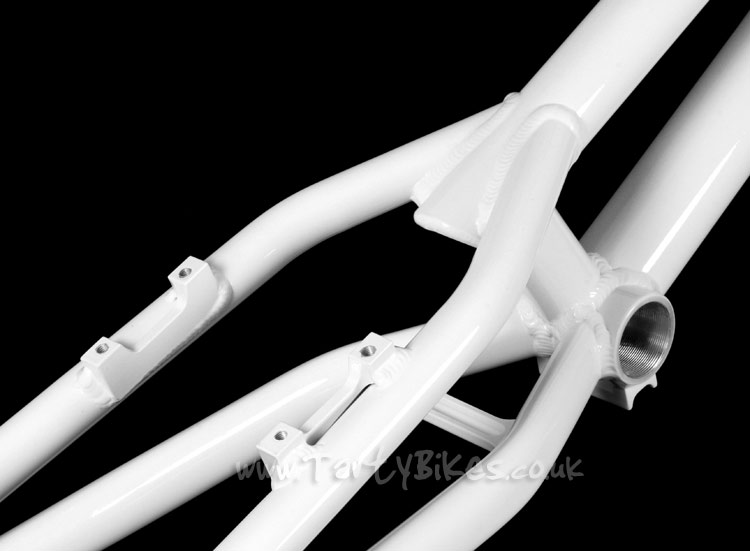

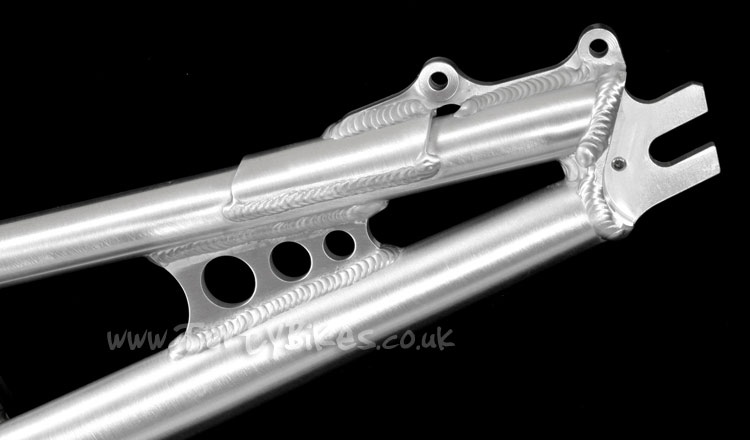

- Available with either CNC machined low-profile dedicated 4-Bolt HS33 mounts spaced at 100mm, allowing the frame to accept even the widest of trials rims, or a heavily braced International Standard disc mount.
- Super low standover height allows for maximum body movement.

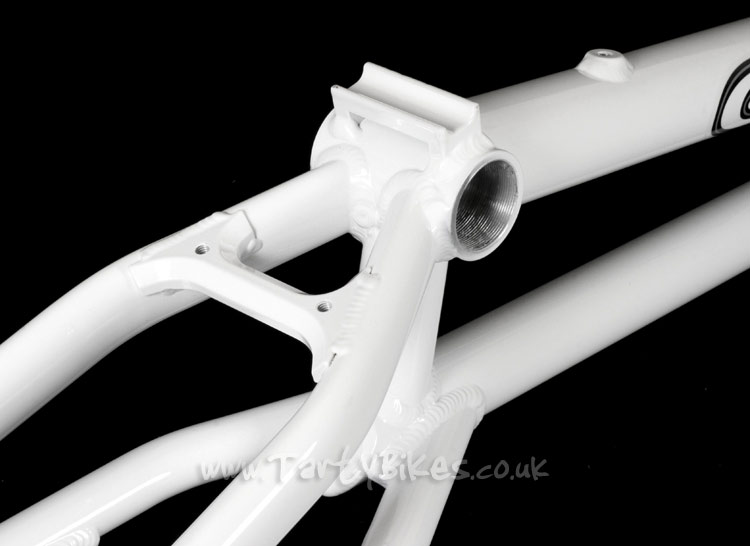

- Takes standard 1 1/8" headset, 120mm long head tube and 68mm BB shell.
- Weights: Silver, Short (both brake models): 1.480kg/3.26lbs; White, Long (both brake models): 1.595kg/3.52lbs.
- Full 6061-T6 aluminium construction keeps the cost right down while still maintaining good strength.
- Silk brushed silver or gloss white finish looks classy, and helps resist scuffs and scratches.
- CNC Machined dropouts help stiffen the frame and provide large weld areas for the tubes.
- Top and down tube gussets at the head tube direct stress away from the ends of the tubes, improving frame life.
- Available with either CNC machined low-profile dedicated 4-Bolt HS33 mounts spaced at 100mm, allowing the frame to accept even the widest of trials rims, or a heavily braced International Standard disc mount.
- Super low standover height allows for maximum body movement.
- Takes standard 1 1/8" headset, 120mm long head tube and 68mm BB shell.
- Weights: Silver, Short (both brake models): 1.480kg/3.26lbs; White, Long (both brake models): 1.595kg/3.52lbs.
Manufacturer Stated Geometry (To be confirmed)
Wheelbase: Short 1000mm, Long 1020mm
Chainstay Length: 362mm
BB Rise: 55mm
Head Angle: 72 degrees
Centre of BB shell to top centre of head tube: Short 600mm, Long 620mm
V!Z Pro700
From £37.49 to £45.82
Save up to 25%
RockMan Pads
From £13.62 to £15.32
Echo TR Front 20"
£25.53
Echo TR Rear Disc
From £43.33 to £46.81
Avid BB7 CS2
From £51.06 to £55.32
Onza Blade 2010
£152.34
Neon ISIS with Bolts
£38.30
Echo SL Headset
£34.04
FSA Orbit Equipe
£18.72
Great frame, super stiff and light. Great for urban use, but will never let you down no matter what or how you ride. Much prefer this to any frame I've had including my zoo python.
Reply from TartyBikes on 21/11/2011
Hi Ant - Glad you like the frame! Thanks for the review.
