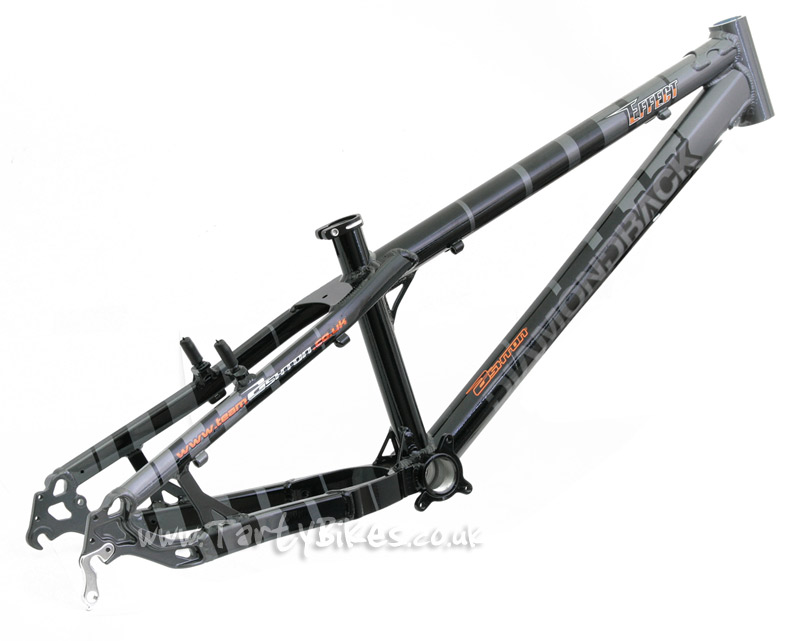

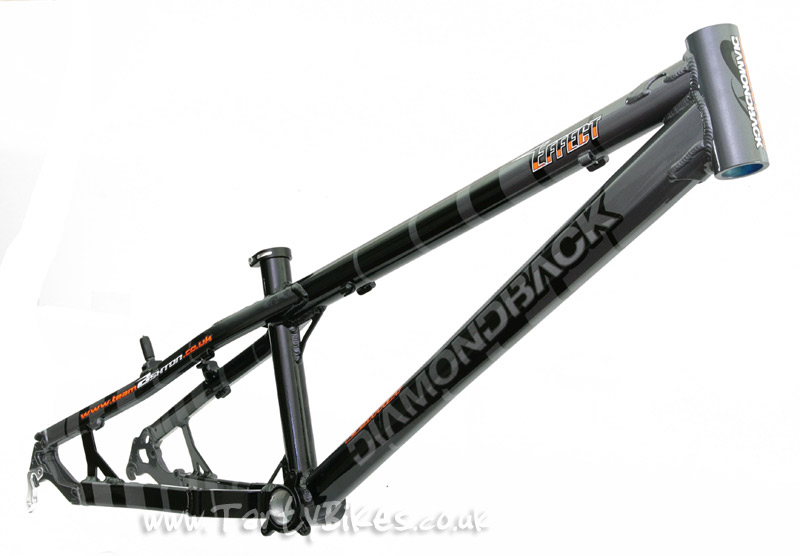

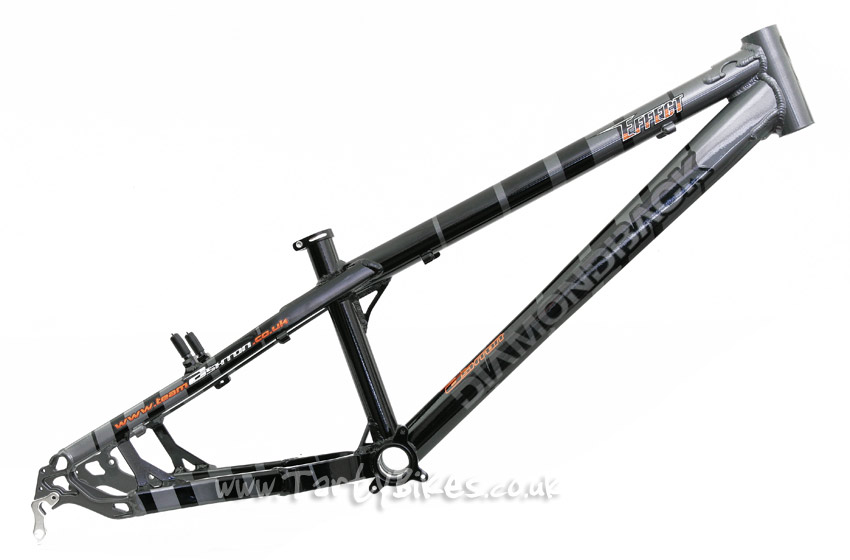

- Brand new 24" street frame from Ashton/DiamondBack!
- Full 6061-T6 aluminium construction keeps the cost right down while still maintaining good strength.
- Forged chainstay yoke improves clearance and maintain stiffness.
- 73mm BB shell (Accepts 68mm-shell BB's).

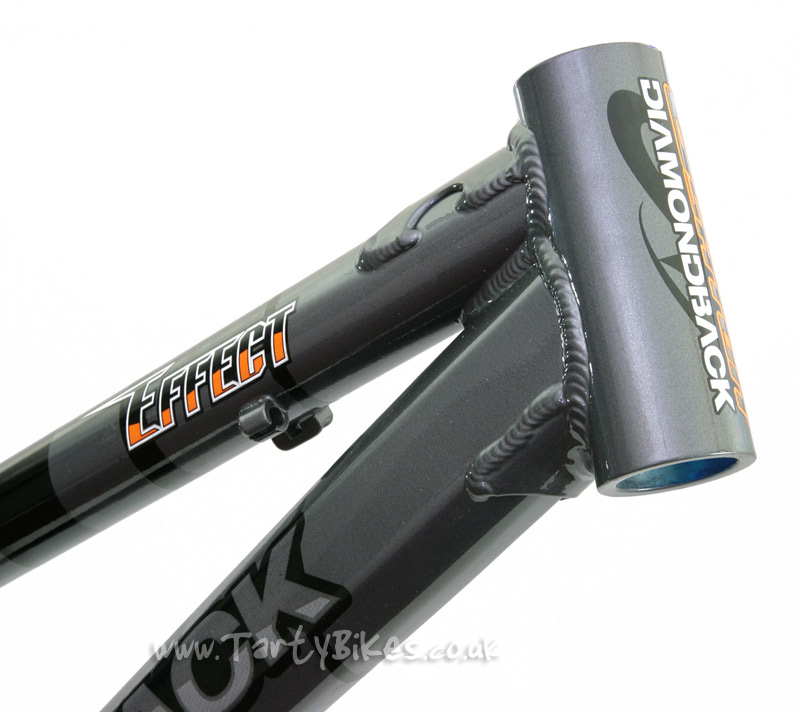

- 120mm standard 1 1/8" head tube with downtube and headtube gussets to increase strength.
- Neat triangular gussets around the seat tube and chain stays to improve strength.

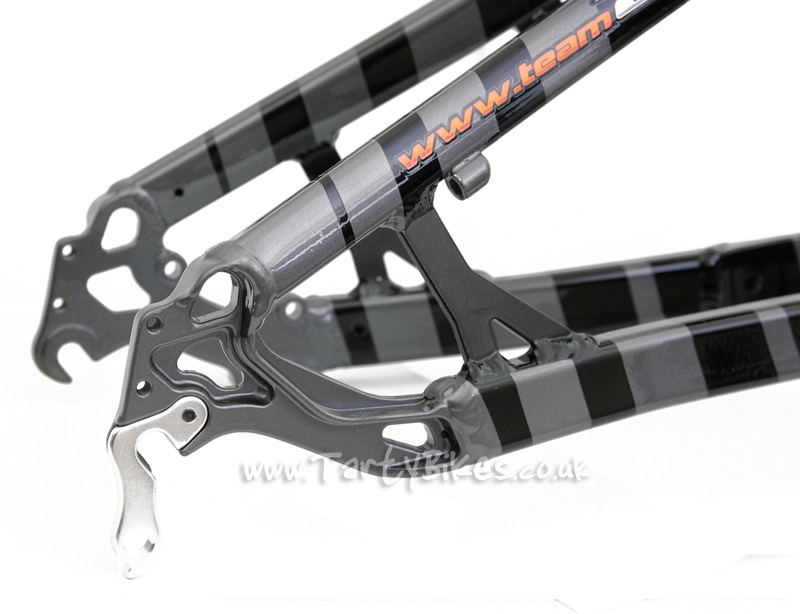

- Neat and simple forged machined vertical dropouts are spaced at 135mm.

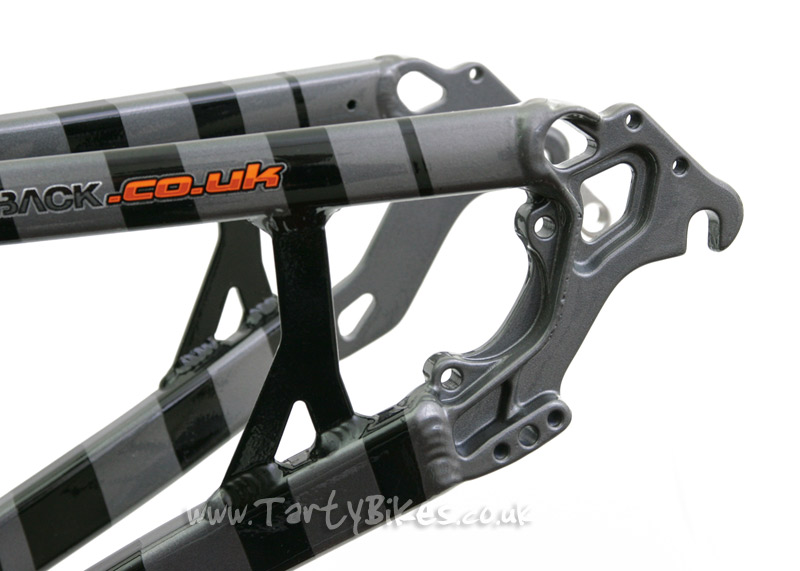

- Disc mount is set at +20 (#3 Hope caliper with 180mm rotor) and one piece with the dropout, with a reinforcing plate to aid stiffness. Please note that fitting a disc brake to this frame requires modification to the disc mount and the bracing bar itself, we only recommend it for experienced DIY mechanics!
- Dedicated V-brake mounts spaced at 80mm.
- Takes a 27.2mm seatpost and 31.8mm seat clamp.
- Powder coat grey finish with water transfers to give it a classy look.
- Please note: Forks supplied with this kit cannot be used with 24" front wheel and a rim brake.
- Weight: 2.27kg/4.99lbs.
Geometry (with Ashton fork)
Wheelbase: 1040mm
Chainstay Length: 380mm
BB Rise: 30mm
Head Angle: 72 degrees
Centre of BB shell to top centre of head tube: 635mm (25")
- Full 6061-T6 aluminium construction keeps the cost right down while still maintaining good strength.
- Forged chainstay yoke improves clearance and maintain stiffness.
- 73mm BB shell (Accepts 68mm-shell BB's).
- 120mm standard 1 1/8" head tube with downtube and headtube gussets to increase strength.
- Neat triangular gussets around the seat tube and chain stays to improve strength.
- Neat and simple forged machined vertical dropouts are spaced at 135mm.
- Disc mount is set at +20 (#3 Hope caliper with 180mm rotor) and one piece with the dropout, with a reinforcing plate to aid stiffness. Please note that fitting a disc brake to this frame requires modification to the disc mount and the bracing bar itself, we only recommend it for experienced DIY mechanics!
- Dedicated V-brake mounts spaced at 80mm.
- Takes a 27.2mm seatpost and 31.8mm seat clamp.
- Powder coat grey finish with water transfers to give it a classy look.
- Please note: Forks supplied with this kit cannot be used with 24" front wheel and a rim brake.
- Weight: 2.27kg/4.99lbs.
Geometry (with Ashton fork)
Wheelbase: 1040mm
Chainstay Length: 380mm
BB Rise: 30mm
Head Angle: 72 degrees
Centre of BB shell to top centre of head tube: 635mm (25")
Trialtech Foam
£5.11
KMC Z510 HX, 1/8'', Coloured
£15.42
Trialtech Sport Splined
From £11.92 to £15.32
Magura HS33 2011, no brake clamps, with shroud nut and olive
From £63.83 to £114.89
Magura Evo2 Brake Adaptor Kit
£8.33
Save 61%
Trialtech Rim Tape
£2.55
Kenda Boxed 24"
£4.26
TartyBikes Bleed Hose
£1.70
Echo TR Caged
£32.50
For £120 there really is no other frame that can match this on value. The geometry is almost spot on - I'd prefur a 73 head angle, but this is nothing a longer stem can't sort out. The frame looks great when built up, and the great build quality really fills you with confidance! And it has vee brake mounts (instead of Magura mounts). Vee's in my opinion are much better for 24" street riding than Magura's :) Unfortunatley the vee brake mounts are a tad too close together to be run with a wide rim like the Echo rims. My Trialtech undrilled rim is a very tight fit with half worn pads. Allthough with very slim pads or a slimmer rim like the Sun Rhyno Lites this wouldn't be a problem. This frame also comes with a free seat post clamp - which is a nice touch! Over all I'm very impressed with this frame.
