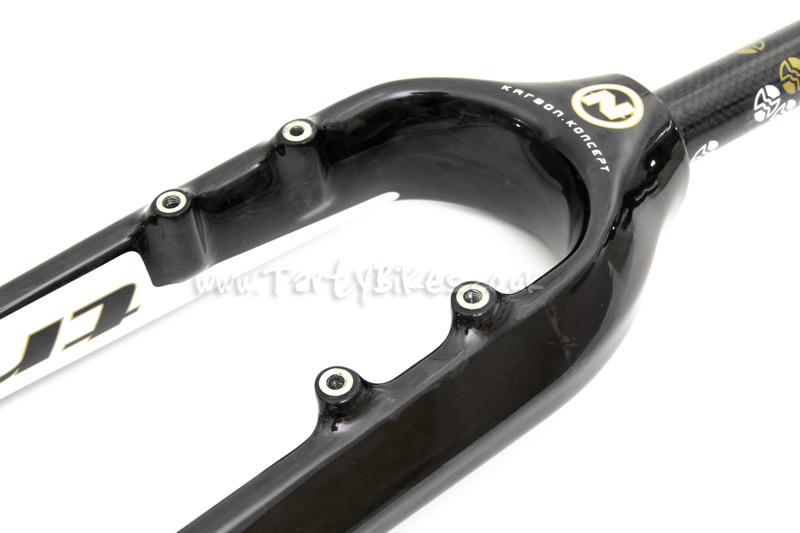

- Brand new for 2011, the much anticipated Try-All Karbon fork.
- Developed over several years with some of the world's top riders including Vincent Hermance, Giacomo and Gilles Coustellier.
- Full uni-directional carbon fibre construction, with aluminium inserts in the top of the steerer tube and also for the 4-bolt mounts.
- Dedicated 4-bolt mounts spaced at 88mm use an aluminium insert to insure thread durability, and also feature an additional carbon fibre wrap around the fork leg to increase mount strength.
- Wide, asymmetric fork leg design gives great stiffness.
- Embossed Try-All logo on each fork leg.
- Stylish water transfer logos on the inside of each leg help finish off the look of the fork.
- 10mm thick dropouts spaced at 100mm are compatible with almost all hubs.
- 200mm long steerer tube uses an aluminium insert to allow the use of a conventional star nut, and also features knurling on the exterior of the tube to improve stem clamp grip. Please note: Stack height of head tube and headset combined must be a minimum of 135mm. Headset spacers do not count towards this measurement. Using a combined stack height less than this will invalidate your warranty. Maximum bolt torque for steerer tube stem bolts is 5Nm.
- Due to the crown design of the fork, a split crown race is highly recommended for ease of installation and removal.
- Not supplied with star nut.
- Weight: 537g!
- Axle Offset: 35mm
- Steerer tube length: 200mm
- Developed over several years with some of the world's top riders including Vincent Hermance, Giacomo and Gilles Coustellier.
- Full uni-directional carbon fibre construction, with aluminium inserts in the top of the steerer tube and also for the 4-bolt mounts.
- Dedicated 4-bolt mounts spaced at 88mm use an aluminium insert to insure thread durability, and also feature an additional carbon fibre wrap around the fork leg to increase mount strength.
- Wide, asymmetric fork leg design gives great stiffness.
- Embossed Try-All logo on each fork leg.
- Stylish water transfer logos on the inside of each leg help finish off the look of the fork.
- 10mm thick dropouts spaced at 100mm are compatible with almost all hubs.
- 200mm long steerer tube uses an aluminium insert to allow the use of a conventional star nut, and also features knurling on the exterior of the tube to improve stem clamp grip. Please note: Stack height of head tube and headset combined must be a minimum of 135mm. Headset spacers do not count towards this measurement. Using a combined stack height less than this will invalidate your warranty. Maximum bolt torque for steerer tube stem bolts is 5Nm.
- Due to the crown design of the fork, a split crown race is highly recommended for ease of installation and removal.
- Not supplied with star nut.
- Weight: 537g!
Fork Dimensions
- Axle to Crown length: 400mm- Axle Offset: 35mm
- Steerer tube length: 200mm
Onza Pro Diamond Rear 26"
£41.70
Magura Hose (1.5m)
£3.40
Monty Brake Oil
£9.17
RockMan Forged with Top Cap
£46.81
Try-All Sloping Top Cap
£5.00
Try-All Carbon Riser
£95.83
TNN Engineering LGM
£28.33
Maxxis Ultralight 26"
£6.37
Giaco: My Revival
£12.49
Save 18%
what are the dimensions of the karbon fork ?
Posted by vince on 06/08/2011
Reply from TartyBikes on 08/08/2011
Hi Vince - The fork has a 400mm leg length with a 35mm offset. I've now updated the description to reflect this. Thanks, Mark
