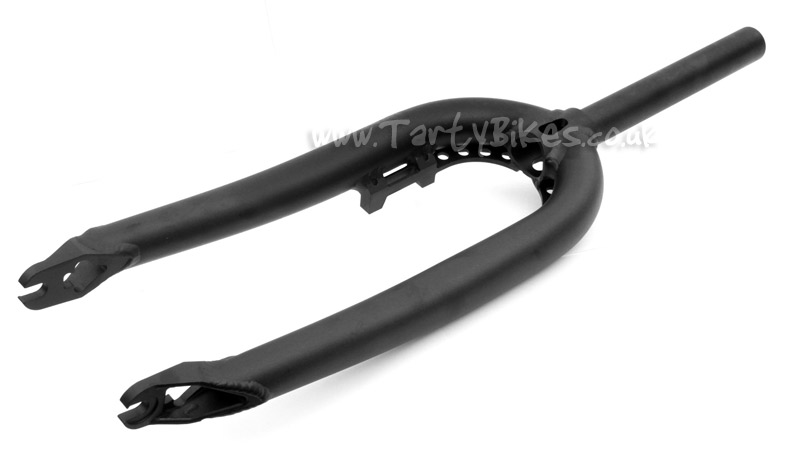

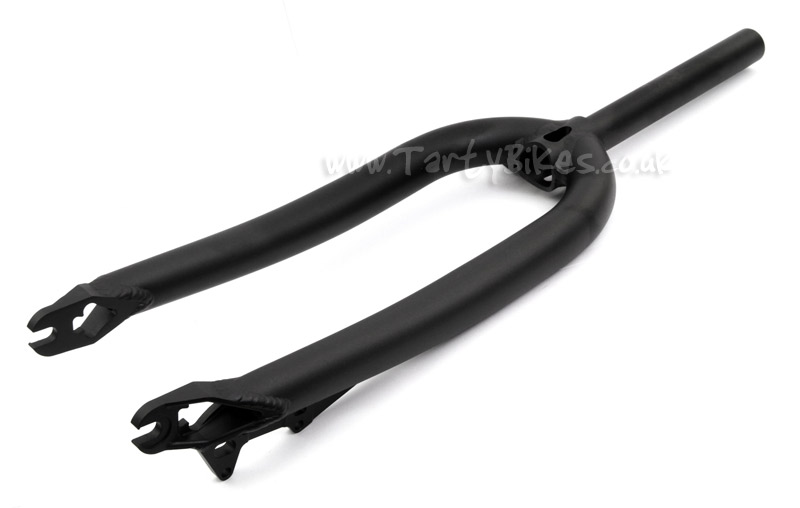

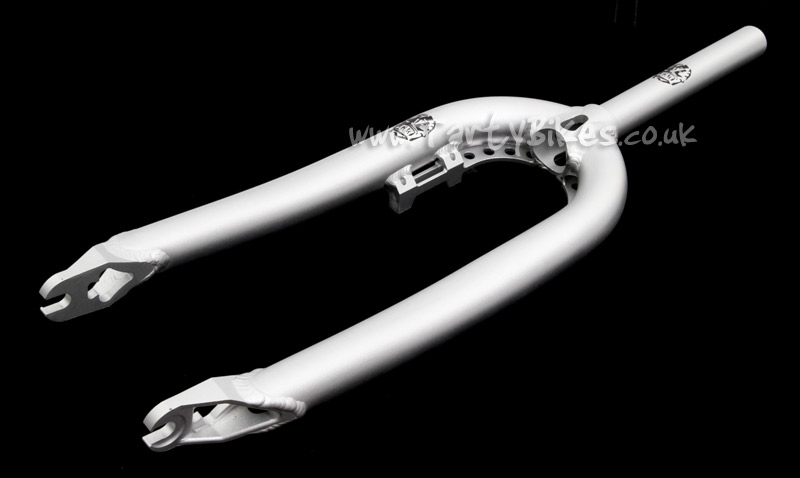

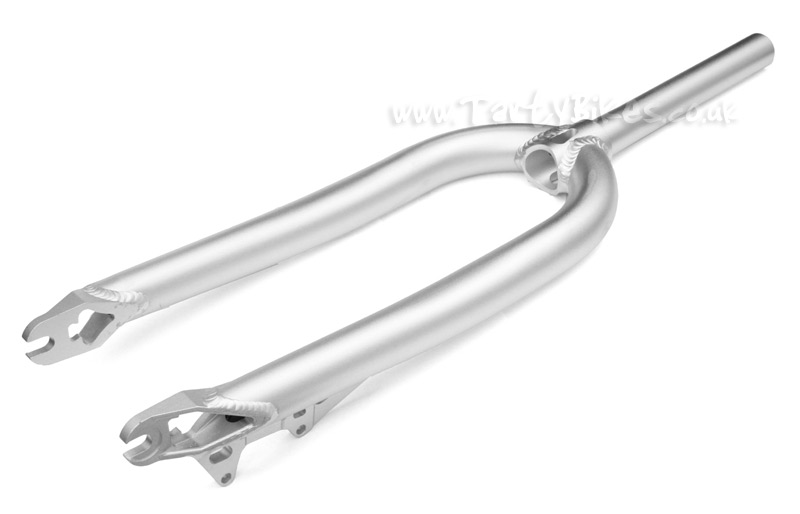

TartyBikes : RockMan Spade

- Updated for late 2010, the redesigned Rockman Spade fork!
- 7005 T6 aluminium trials-specific fork.

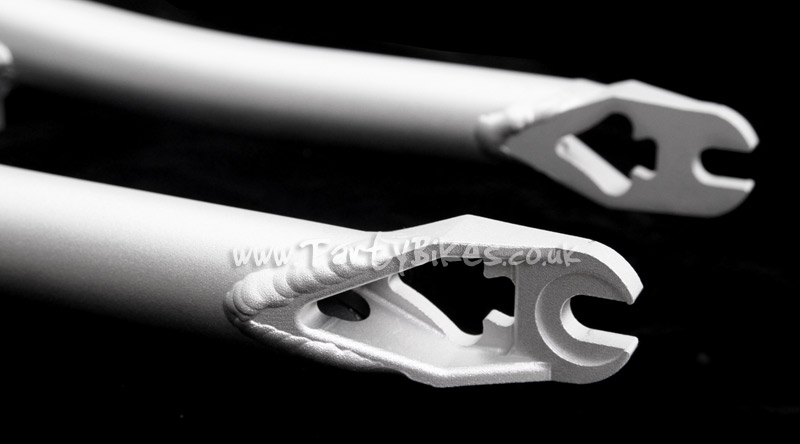

- Custom CNC machined dropouts with spade shaped cut out look good and help to reduce weight. Please note that the Disc forks are for 10mm axle front hubs (such as Echo TR) only.

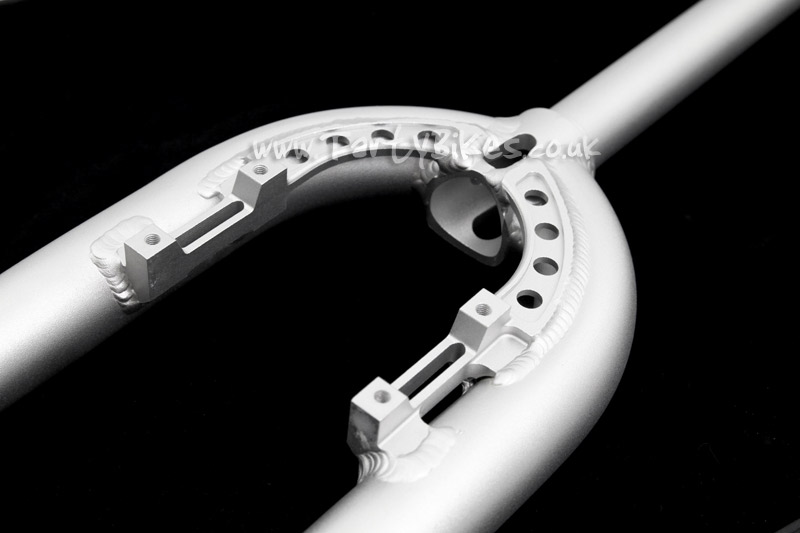

- Newly designed +20mm disc mount has a stronger join with the fork, but also has all excess material removed to still keep weight down.

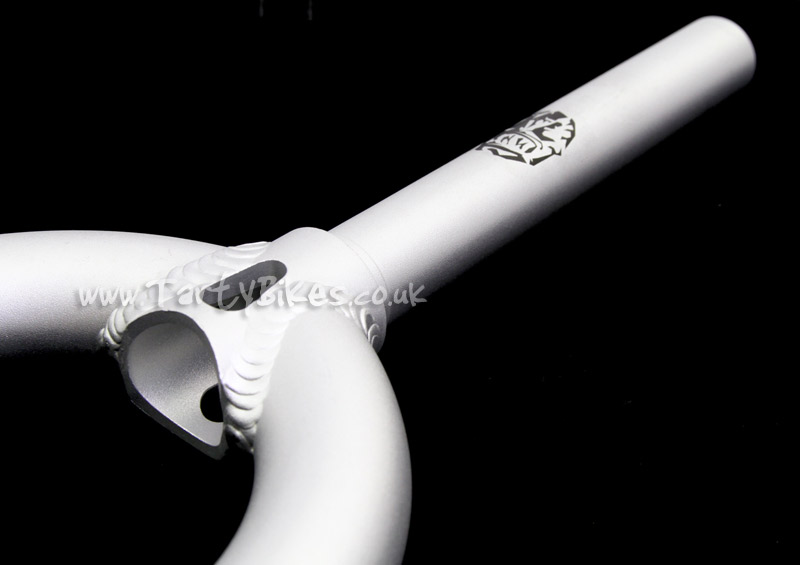

- One piece steerer tube with extra thick 6mm lower and 4mm upper wall overcomes problems seen on pressed and welded steerers and offers a stiffer fork.

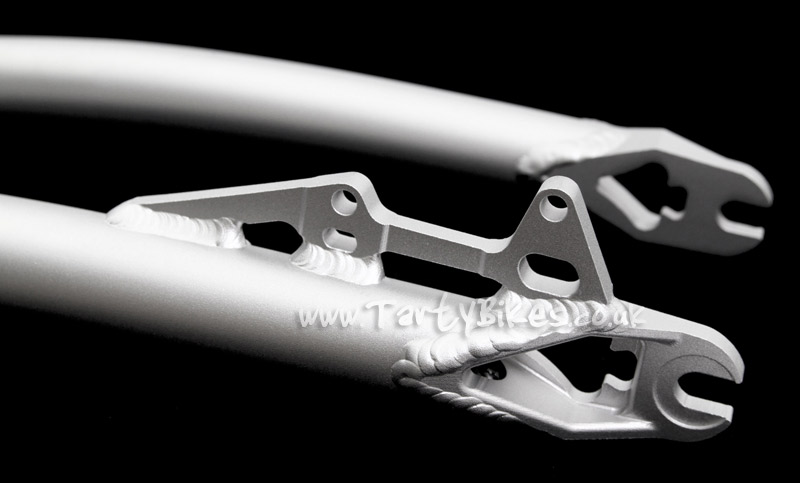

- 4 bolt mounts on the rear of the fork, spaced at 90mm, feature a new lighter integrated booster which helps to increase brake stiffness and overall durability.
- Oversized tubing gauge used for the fork blades provides an excellent strength to weight ratio (also giving a larger contact/weld area at the crown).
- Available for 26" wheel bikes only,
- Shot blast anodised black or silver finish (no logos).
- Weight: 822g (Black, disc only, with uncut 200mm steerer).
- Please Note: Does not include star nut.

Fork Dimensions

- Axle to Crown length: 400mm
- Axle Offset: 30mm
- Steerer tube length: 200mm

Please note that due to the design limitations of 4-Bolt forks, they are always less durable than the same model without the 4-Bolt mount fitted. The stiff section where the mount is located causes a stress riser, and this makes the fork more likely to break. We therefore advise that forks fitted with a 4-Bolt brake mount will always fail earlier than the same fork without this mount attached.
