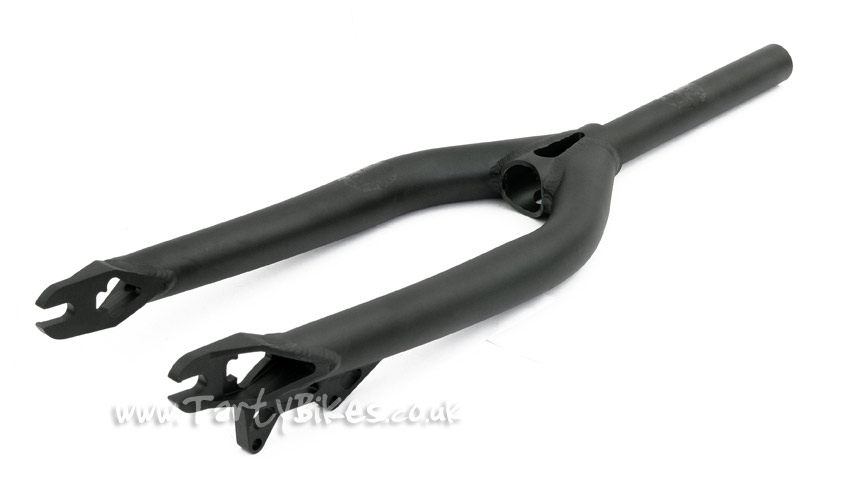

- 7005 T6 aluminium trials-specific fork.

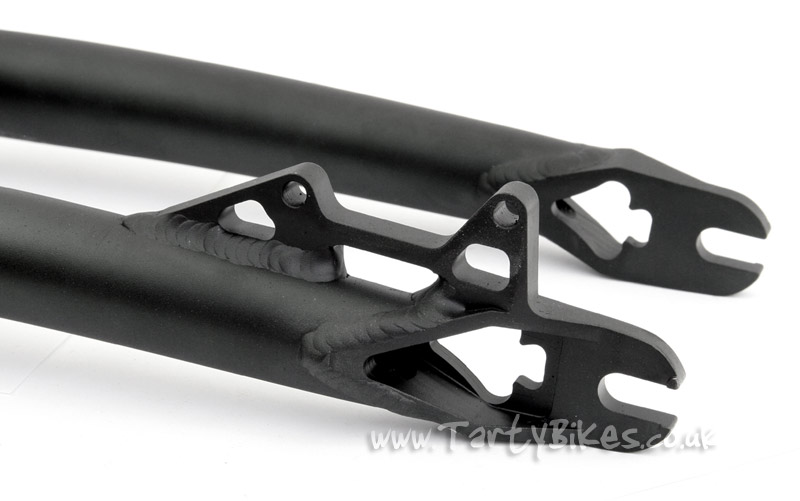

- Custom CNC machined dropouts with spade shaped cut out look good and help to reduce weight.
- One piece steerer tube with extra thick bored section overcomes problems seen on pressed and welded steerers and offers a stiffer fork.
- Super thick one piece dropout and disc mount (International Standard position).

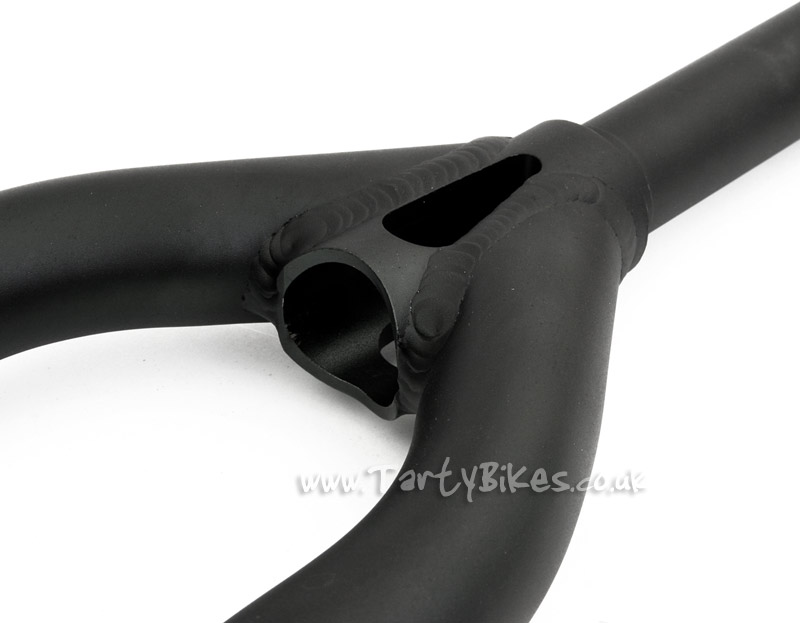

- Oversized tubing gauge used for the fork blades provides an excellent strength to weight ratio (also giving a larger contact/weld area at the crown).
- Available for 20" wheel bikes only,

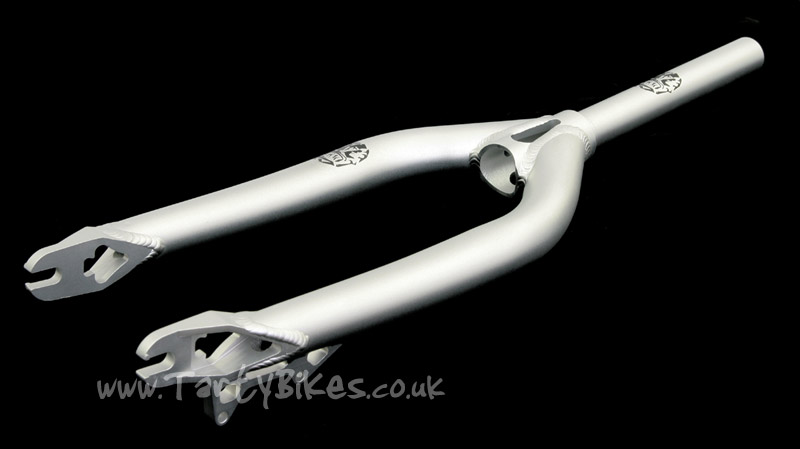

- Anodised matte silver or matte mlack finish with Black Rockman logo transfers on the right hand fork leg and steerer tube.
- Weight: 748g (with uncut 220mm steerer).
- Please Note: Does not include star nut.
- Axle Offset: 26mm
- Steerer tube length: 220mm
- Custom CNC machined dropouts with spade shaped cut out look good and help to reduce weight.
- One piece steerer tube with extra thick bored section overcomes problems seen on pressed and welded steerers and offers a stiffer fork.
- Super thick one piece dropout and disc mount (International Standard position).
- Oversized tubing gauge used for the fork blades provides an excellent strength to weight ratio (also giving a larger contact/weld area at the crown).
- Available for 20" wheel bikes only,
- Anodised matte silver or matte mlack finish with Black Rockman logo transfers on the right hand fork leg and steerer tube.
- Weight: 748g (with uncut 220mm steerer).
- Please Note: Does not include star nut.
Fork Dimensions
- Axle to Crown length: 375mm- Axle Offset: 26mm
- Steerer tube length: 220mm
Try-All 'H' 116 Disc
£89.36
Chris King NoThreadSet
£101.28
Echo TR Brake Clamps
£21.28
Continental Rubber Queen
£38.30
Trialtech SL Front 20"
£38.30
TartyBikes Star Nut
£2.55
Echo TR Front 20"
£25.53
KMC Z510 HX, 1/8", Silver
£10.00
Glass Eye Trials GET2
£15.32
Would these forks fit an Onza Bird 2010?
Posted by tom on 11/01/2011
Reply from TartyBikes on 12/01/2011
Hi Tom - These forks would fit the Onza Bird 2010 fine. Thanks, Mark
