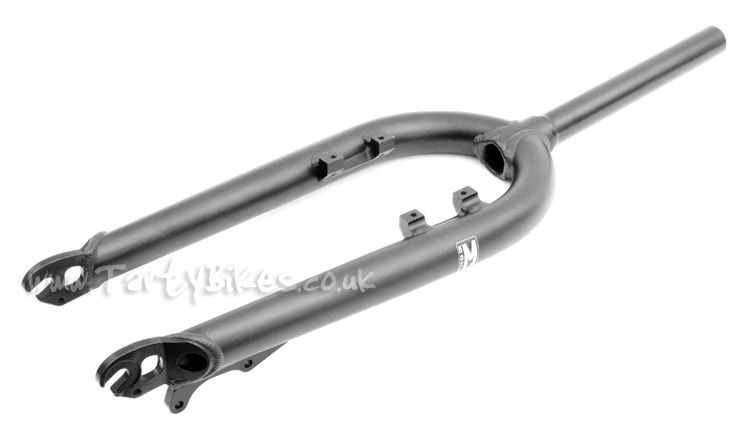

- Building on the proven Echo Urban 26" forks, now with adjusted brake mount positioning to allow the use of a rim brake on a 24" front wheel!
- Super-thick butted steerer is now a massive 8mm thick at the bottom!
- Featuring fork blades which are welded to the crown section at a more shallow angle (closer to 90 degrees from the line of the crown) than almost all other forks, the Urbans have excellent tyre clearance and a rather distinctive 'wide' shape.
- Pressed and then welded construction process for the steerer, making these forks super strong.
- Slightly thicker fork legs for even more strength.

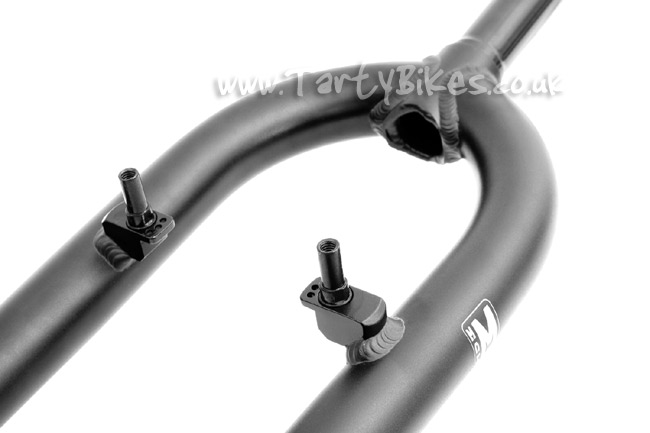

- Available for 24" wheel bikes only, with a choice of dedicated Magura 4-Bolt mounts and a disc mount or V-brake mounts (spaced at 94mm) and disc mount.

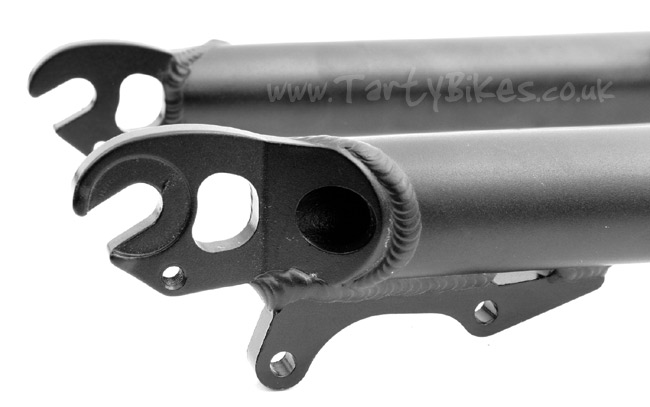

- 9mm thick CNC machined disc mount, to take the extra stresses of trials riding.
- Brushed aluminium or anodised black finish helps scratches stay un-noticed for longer and a top coat of lacquer helps them keep their shine.
- Weight: 898g (V-Brake/Disc option).
- Weights including full length steerer tube.
- Axle Offset: 45mm
- Steerer tube length: 220mm
- Super-thick butted steerer is now a massive 8mm thick at the bottom!
- Featuring fork blades which are welded to the crown section at a more shallow angle (closer to 90 degrees from the line of the crown) than almost all other forks, the Urbans have excellent tyre clearance and a rather distinctive 'wide' shape.
- Pressed and then welded construction process for the steerer, making these forks super strong.
- Slightly thicker fork legs for even more strength.
- Available for 24" wheel bikes only, with a choice of dedicated Magura 4-Bolt mounts and a disc mount or V-brake mounts (spaced at 94mm) and disc mount.
- 9mm thick CNC machined disc mount, to take the extra stresses of trials riding.
- Brushed aluminium or anodised black finish helps scratches stay un-noticed for longer and a top coat of lacquer helps them keep their shine.
- Weight: 898g (V-Brake/Disc option).
- Weights including full length steerer tube.
Fork Dimensions
- Axle to Crown length: 408mm- Axle Offset: 45mm
- Steerer tube length: 220mm
Try-All Rubber
£5.53
Trialtech Sport Screw On
From £11.92 to £19.57
Trialtech Race Rubber
£5.11
Echo TR
£25.53
Shimano Acera
£10.21
Trialtech Sport
£15.83
Maxxis Holy Roller
£20.83
will the forks fit on a onza zoot 2010?
Posted by james riches on 07/12/2010
Reply from TartyBikes on 08/12/2010
Hello - The Urban forks should fit on a Zoot with no problems at all. Thanks, Mark
