Echo Urban '09 20''

Quick find code: 010921

(Based on 3 customer ratings)

£72.34

Select an option below to add to your basket

Key:

In Stock

On Order

Discontinued

Click an image to enlarge

	4-Bolt & Disc	Disc Only	V-Brake & Disc
Black	£72.34	£72.34	£72.34
Silver	£72.34	£72.34	£72.34

Contact me when back in stock

Choose quantity

Description

Reviews (1)

Questions (6)

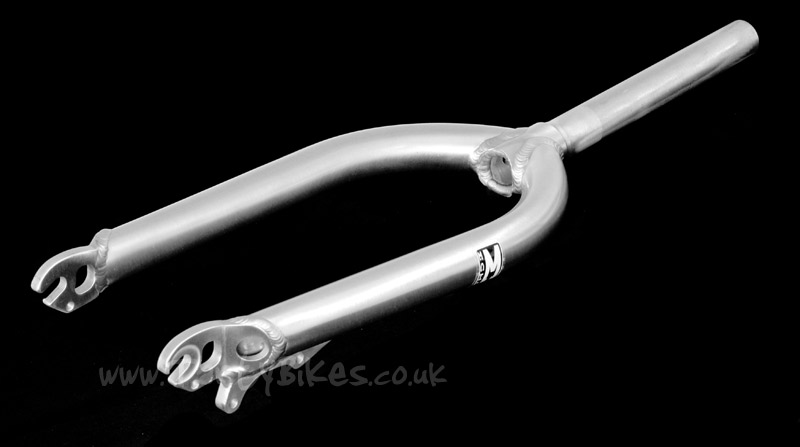

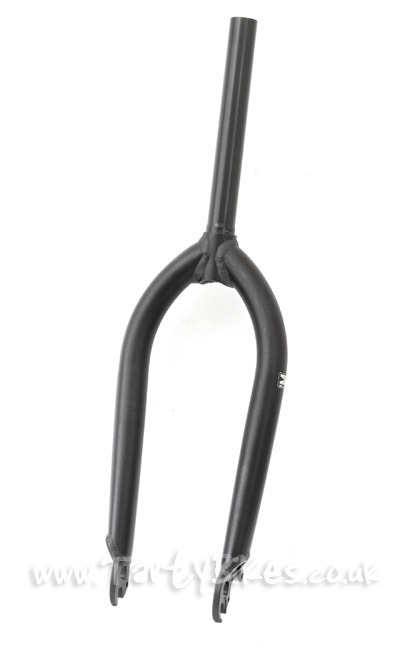

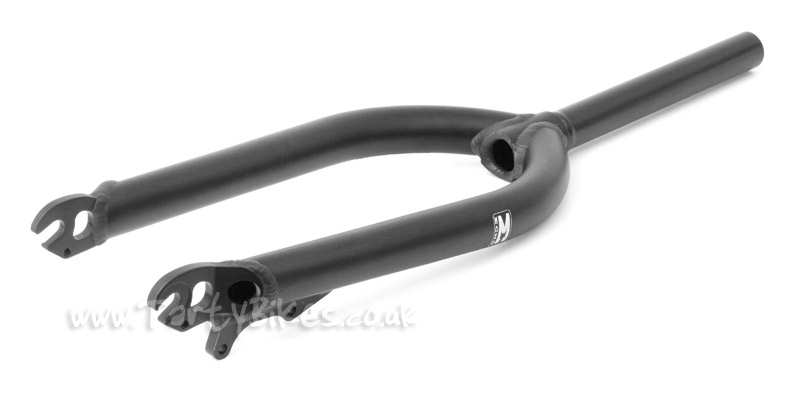

- Well-proven and very popular fork for both street and natural riders, updated for 2009.
- Super-thick butted steerer is now even stronger than previously, being a massive 8mm thick at the bottom!
- Featuring fork blades which are welded to the crown section at a more shallow angle (closer to 90 degrees from the line of the crown) than almost all other forks, the Urbans have excellent tyre clearance and a rather distinctive 'wide' shape.
- Using the same pressed and then welded construction process for the steerer, these forks are stiffer than the 2006 models due to the extra thick steerer tube they now have. Star nut pre-fitted to this fork.

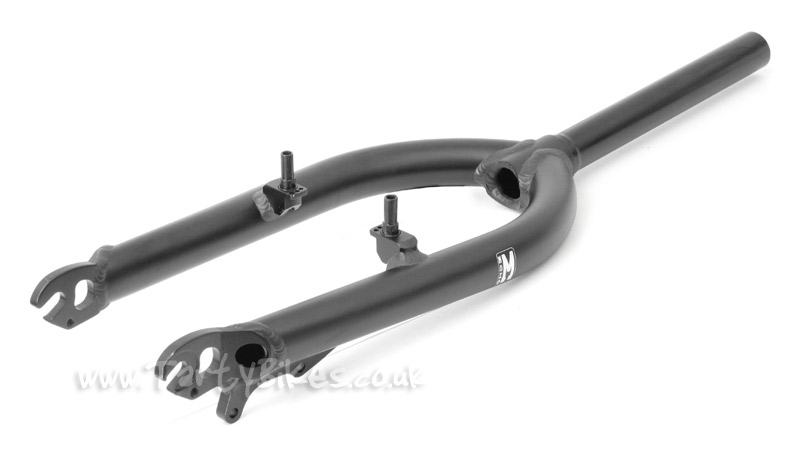

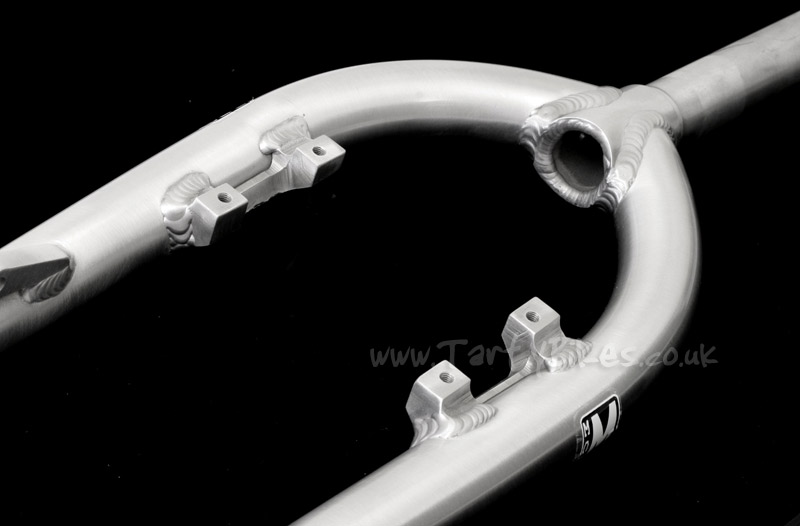

- Available with a choice of dedicated Magura 4-Bolt mounts and a disc mount, V-brake mounts and disc mount, or as a disc only set-up.

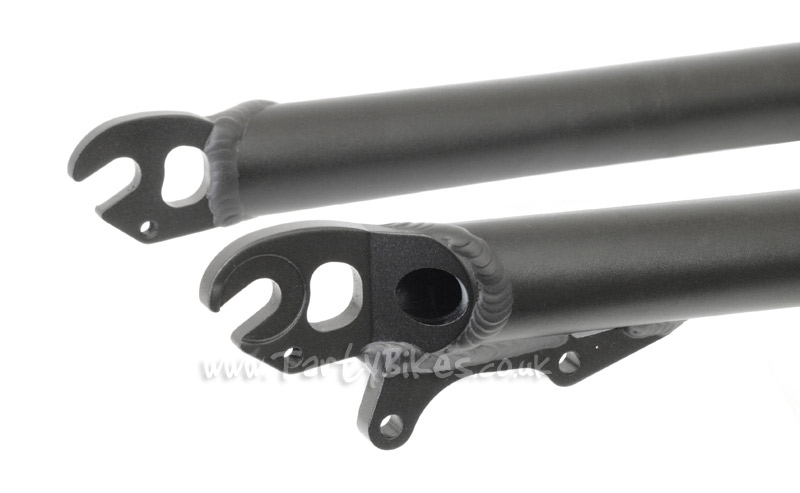

- 9mm thick CNC machined disc mount, to take the extra stresses of trials riding.
- Brushed aluminium finish helps scratches stay un-noticed for longer and a top coat of lacquer helps them keep their shine.
- Weight: 740g (Disc Only), 785g (4-Bolt/Disc), 778g (V-Brake/Disc).

Fork Dimensions
- Axle to Crown length: 360mm
- Axle Offset: 35mm
- Steerer tube length: 220mm
