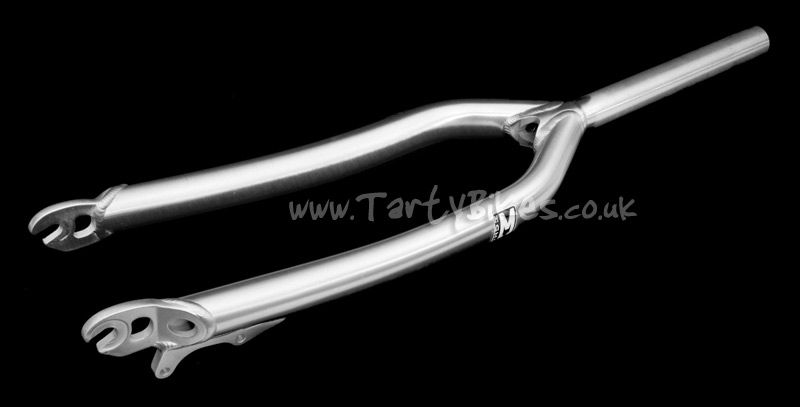

- Thick butted steerer is tough yet lightweight.

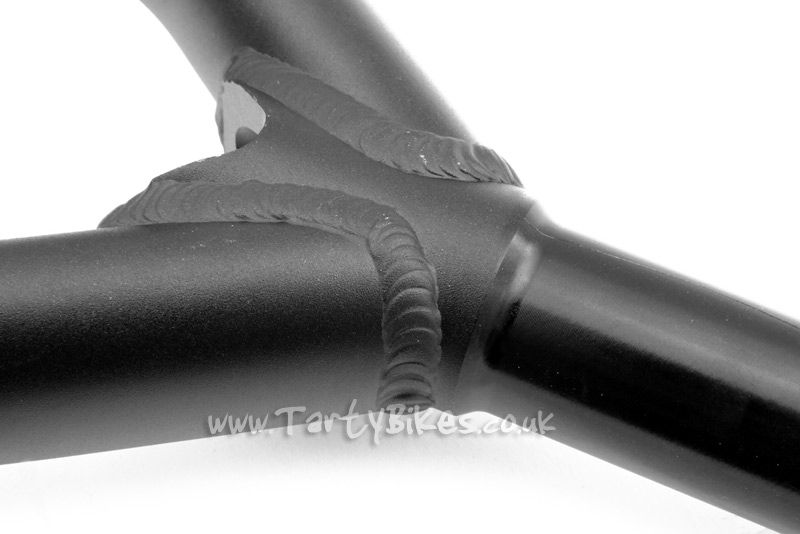

- Oversized and internally butted tubes for the legs provide an excellent strength to weight ratio (also giving a larger contact/weld area at the crown), while giving a reassuringly 'chunky' look to the fork.
- New for 2011, the fork features a built-in crown race. This is ideal for use with Echo SL Headsets, or any headset with a 45° bearing on the lower cup. Using a traditional crown race will void the warranty.
- Large cut-out at the underside of the crown reduces material where it isn't required, helping to shed more of the fork's overall weight.
- Uses the same tried and tested one piece steerer as previous year's Echo forks. Star nut included.

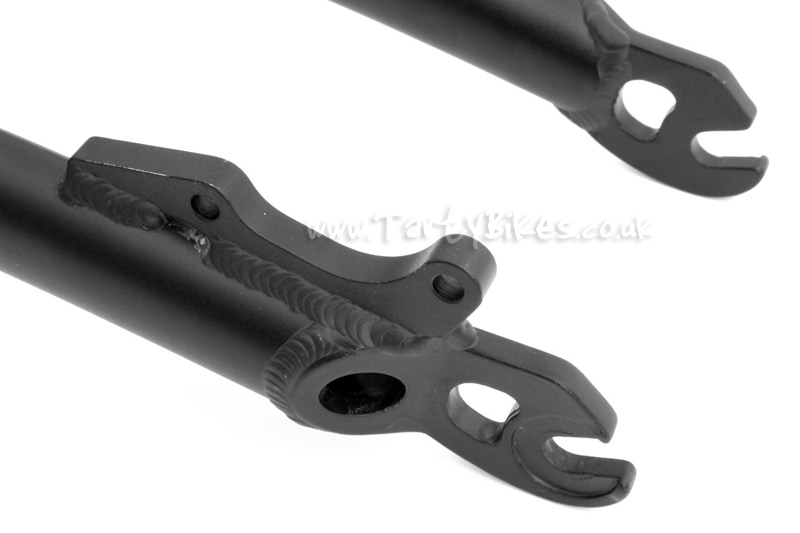

- Available for 26" wheel bikes only, with a 9mm thick disc tab to take the extra stresses involved in trials riding.

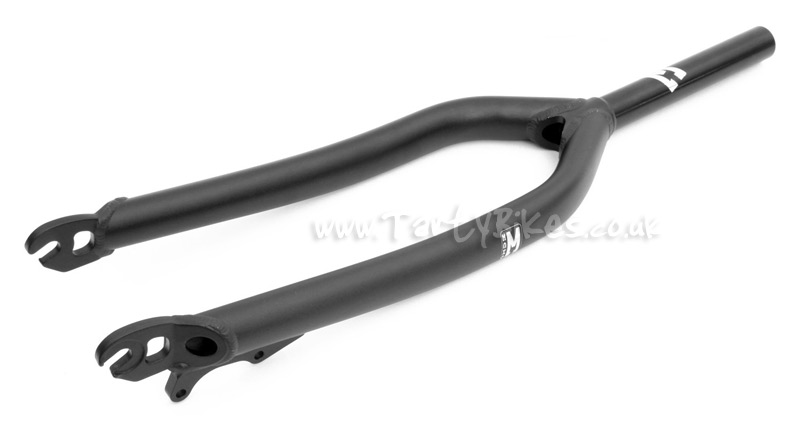

- Classy matt anodised black finish with laser etched logos or brushed silver finish with stick-on Echo graphics.
- Weight: 679g (Disc only)
- Weight includes full length steerer tube.
- Axle Offset: 40mm
- Steerer tube length: 180mm
- Oversized and internally butted tubes for the legs provide an excellent strength to weight ratio (also giving a larger contact/weld area at the crown), while giving a reassuringly 'chunky' look to the fork.
- New for 2011, the fork features a built-in crown race. This is ideal for use with Echo SL Headsets, or any headset with a 45° bearing on the lower cup. Using a traditional crown race will void the warranty.
- Large cut-out at the underside of the crown reduces material where it isn't required, helping to shed more of the fork's overall weight.
- Uses the same tried and tested one piece steerer as previous year's Echo forks. Star nut included.
- Available for 26" wheel bikes only, with a 9mm thick disc tab to take the extra stresses involved in trials riding.
- Classy matt anodised black finish with laser etched logos or brushed silver finish with stick-on Echo graphics.
- Weight: 679g (Disc only)
- Weight includes full length steerer tube.
Fork Dimensions
- Axle to Crown length: 400mm- Axle Offset: 40mm
- Steerer tube length: 180mm
