- Thick butted steerer is tough yet lightweight.

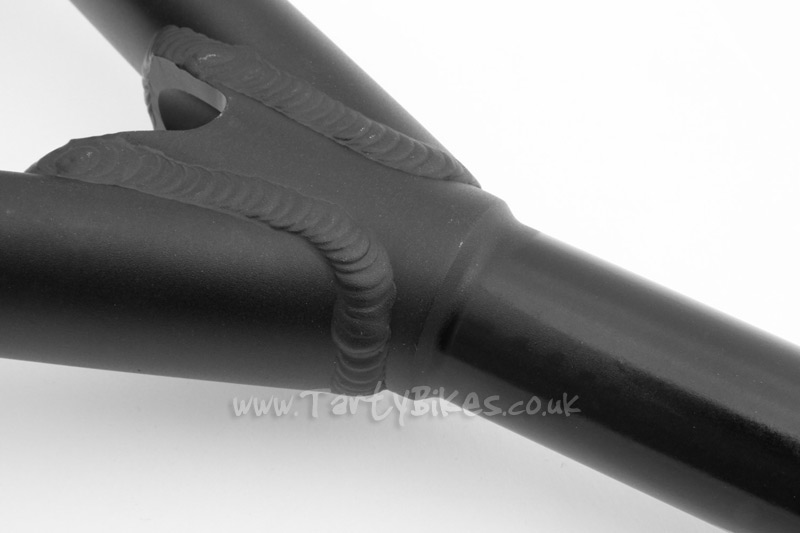

- Oversized and internally butted tubes for the legs provide an excellent strength to weight ratio (also giving a larger contact/weld area at the crown), while giving a reassuringly 'chunky' look to the fork.
- Thick steerer now features an integrated crown race (45 degree - perfect for Echo SL headsets), reducing the stress riser at the bottom of the steerer tube. You must run a sealed bearing headset with 45 degree lower bearing with these forks and no crown race, or the warranty will be void.
- Large cut-out at the underside of the crown reduces material where it isn't required, helping to shed more of the fork's overall weight.
- Uses the same tried and tested one piece steerer as previous year's Echo forks. Star nut included.
- Available for 20" wheel bikes only, with a 9mm thick disc tab to take the extra stresses involved in trials riding.

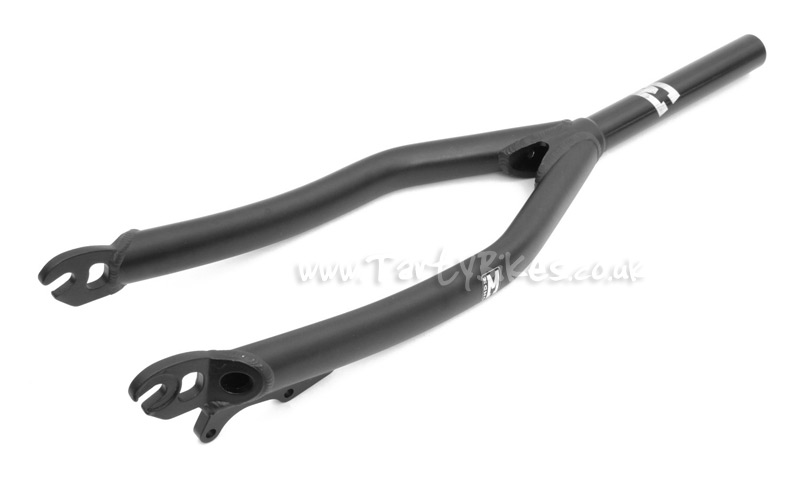

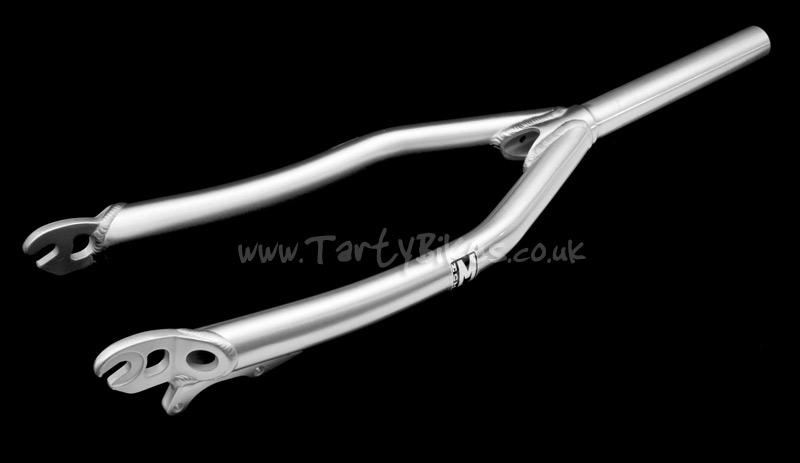

- Classy matt anodised black finish with laser etched logos or brushed silver finish with stick-on Echo graphics.
- Weight: 589g
- Axle Offset: 40mm
- Steerer tube length: 185mm
- Oversized and internally butted tubes for the legs provide an excellent strength to weight ratio (also giving a larger contact/weld area at the crown), while giving a reassuringly 'chunky' look to the fork.
- Thick steerer now features an integrated crown race (45 degree - perfect for Echo SL headsets), reducing the stress riser at the bottom of the steerer tube. You must run a sealed bearing headset with 45 degree lower bearing with these forks and no crown race, or the warranty will be void.
- Large cut-out at the underside of the crown reduces material where it isn't required, helping to shed more of the fork's overall weight.
- Uses the same tried and tested one piece steerer as previous year's Echo forks. Star nut included.
- Available for 20" wheel bikes only, with a 9mm thick disc tab to take the extra stresses involved in trials riding.
- Classy matt anodised black finish with laser etched logos or brushed silver finish with stick-on Echo graphics.
- Weight: 589g
Fork Dimensions
- Axle to Crown length: 370mm- Axle Offset: 40mm
- Steerer tube length: 185mm
Try-All Half-Link
£3.40
Hope Mono Trial Seal Kit
From £4.26 to £7.66
Trialtech SL Rear 19"
£46.81
Echo TR Hydraulic Disc
£82.50
Monty 219 Magura Rear 19"
£48.60
TNN Engineering LGM Refill
£13.33
Try-All Stiky Rear 19''
£25.00
Save 16%
A2Z Wavy
From £10.21 to £12.77
RockMan Carbon Riser
£91.66
Save 9%
Hope Tech Trial
From £135.32 to £143.83
Hi! what star nut will fit these forks, thanks
Posted by derek on 29/07/2011
Reply from TartyBikes on 29/07/2011
Hi Derek - The Medium size would be ideal. There is also a pre-installed starnut supplied when you purchase these forks. Thanks, Mark
