Echo Disc Brake Caliper

Product code: 12629

Overview
Additional Information
Questions

	#3 - Red bore cap	$54.07

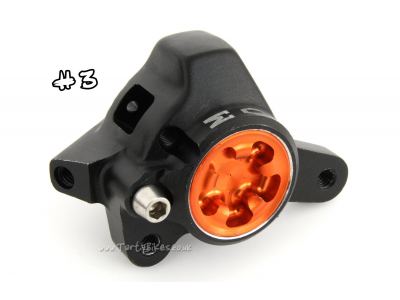

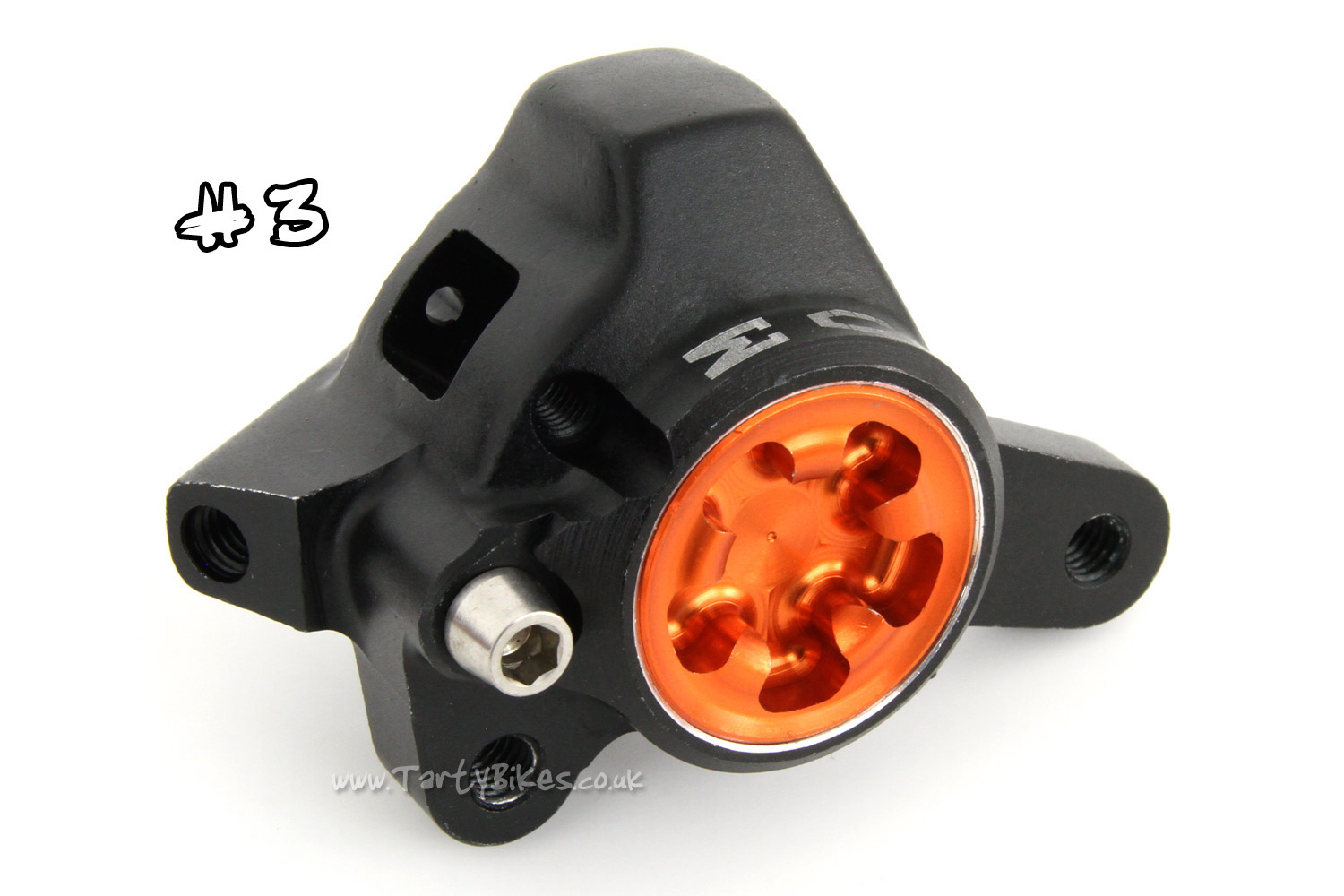

	#3 - Silver bore cap	$54.07

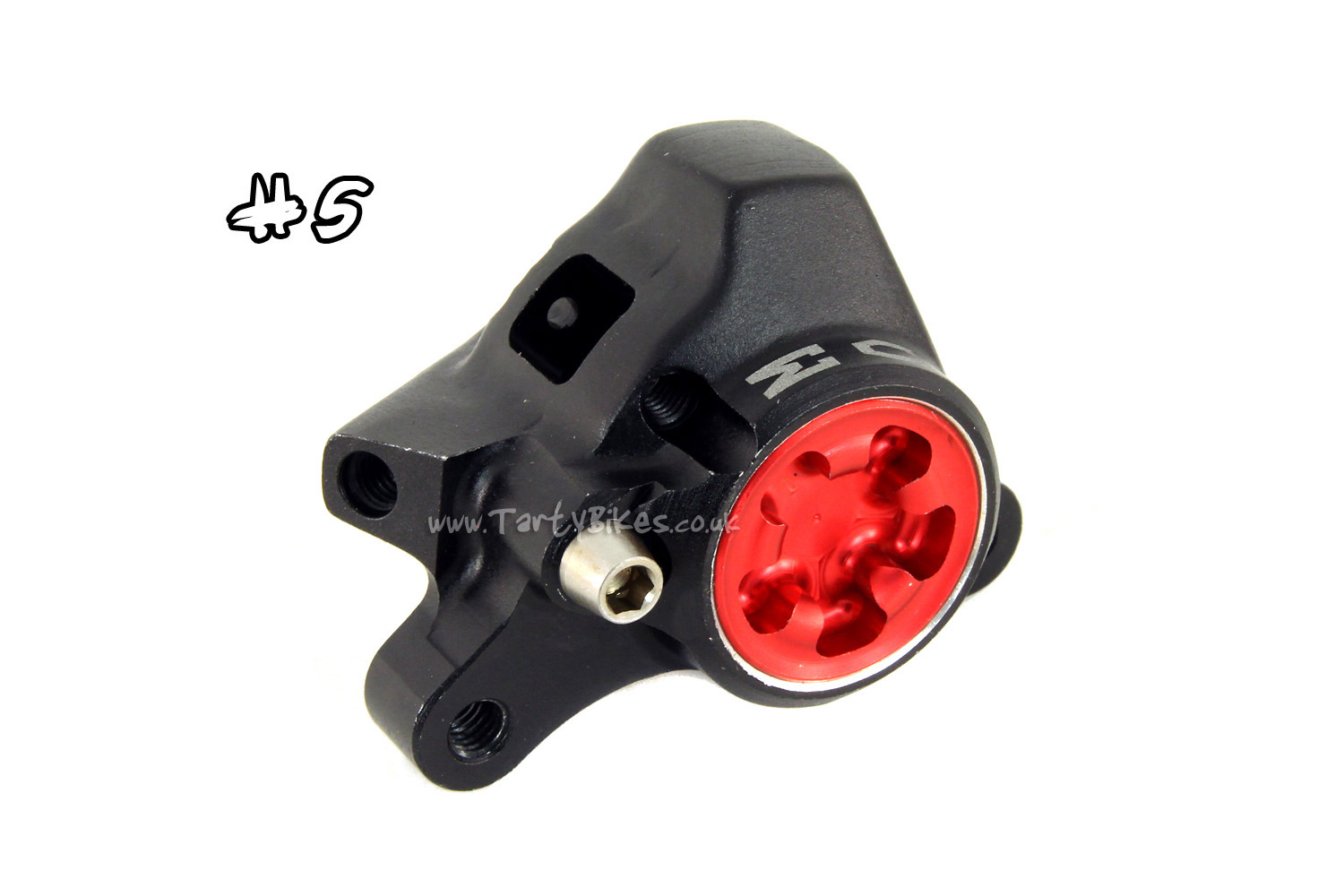

	#5 - Red bore cap	$54.07
	#5 - Silver bore cap	$54.07
	#5 - Silver bore cap - Slight mark to bore cap	$51.89 $54.07

Sold out

- Replacement disc brake caliper from Echo!
- To fit Echo TR disc brake levers only. Not suitable for use with Echo TR rim brake levers, or other brands of disc brake lever.

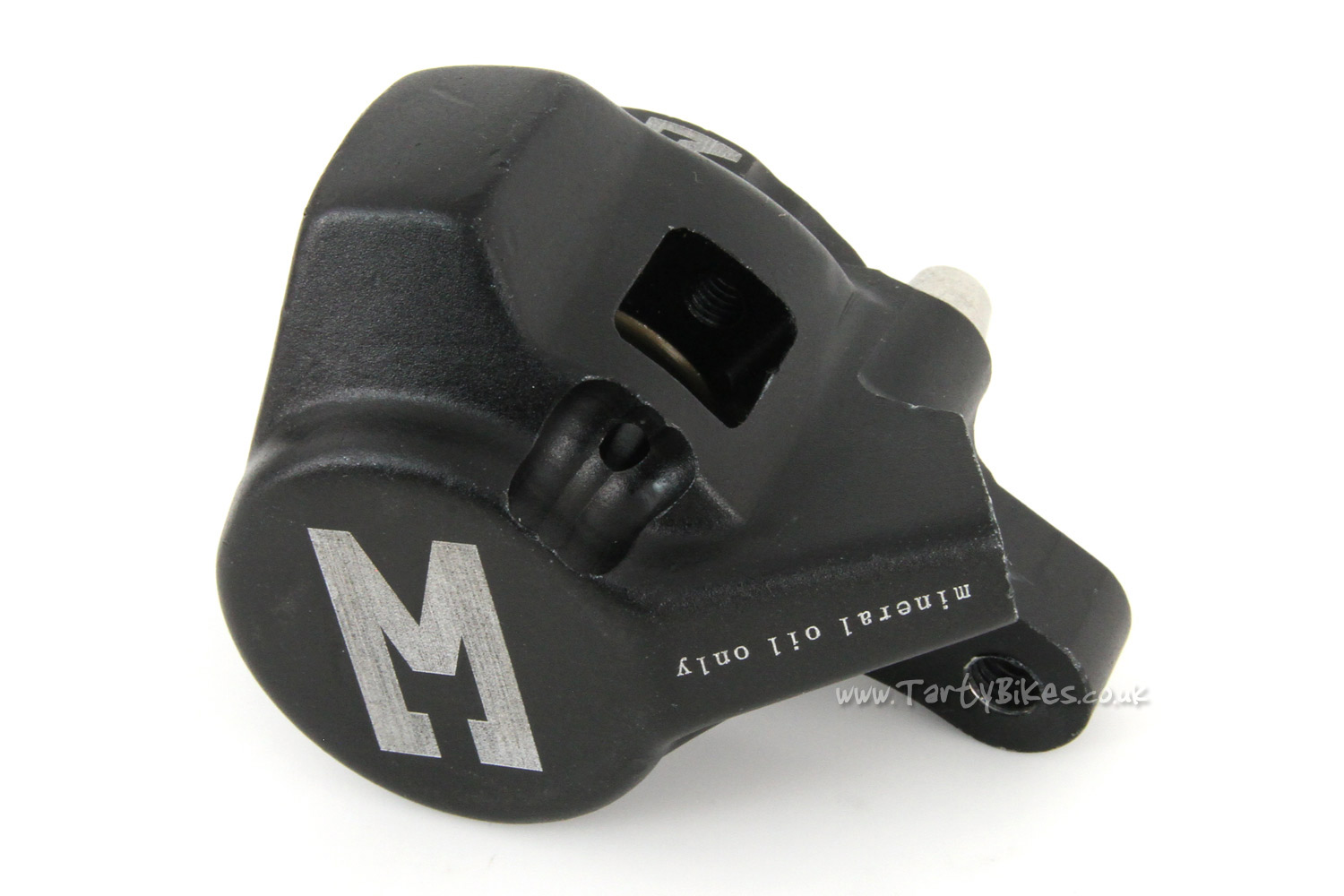

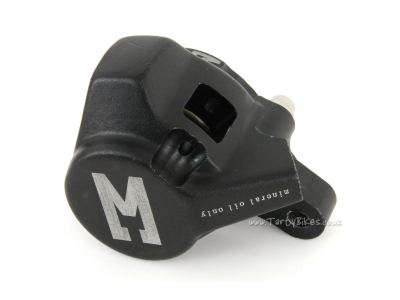

- Only compatible with mineral oil, not Dot brake fluid.
- Forged then CNC finished from high grade aluminium.
- Bleed bolt, bore cap and pistons included.
- International standard fitting (51mm between bolt holes).
- Brake pads, retention pin and fitting bolts not included.
- Weight: 98g (#5), 99.7g (#3)

Additional Information

Number 5 caliper fits:
International Standard fork with 160mm rotor
+20 fork with 180mm rotor
+30 fork with 190mm rotor
International Standard frame with 140mm rotor
+20 frame (Koxx Hydroxx 20 and 26", Koxx Silver Sky, Inspired Fourplay) with 160mm rotor
+40 frame (GU LE '09, Simtra ST-1) with 180mm rotor
+50 frame (YaaBaa 1499) with 190mm rotor

Number 3 Caliper fits:
International Standard fork with 180mm rotor
+20 fork with 200mm rotor
+30 fork with 210mm rotor
International Standard frame with 160mm rotor
+20 frame (Koxx Hydroxx 20 and 26", Inspired Fourplay will not fit Koxx Silver Sky) with 180mm rotor
+40 frame (GU LE '09, Simtra ST-1) with 200mm rotor
+50 frame (YaaBaa 1499) with 210mm rotor
