TartyBikes : Echo Trial

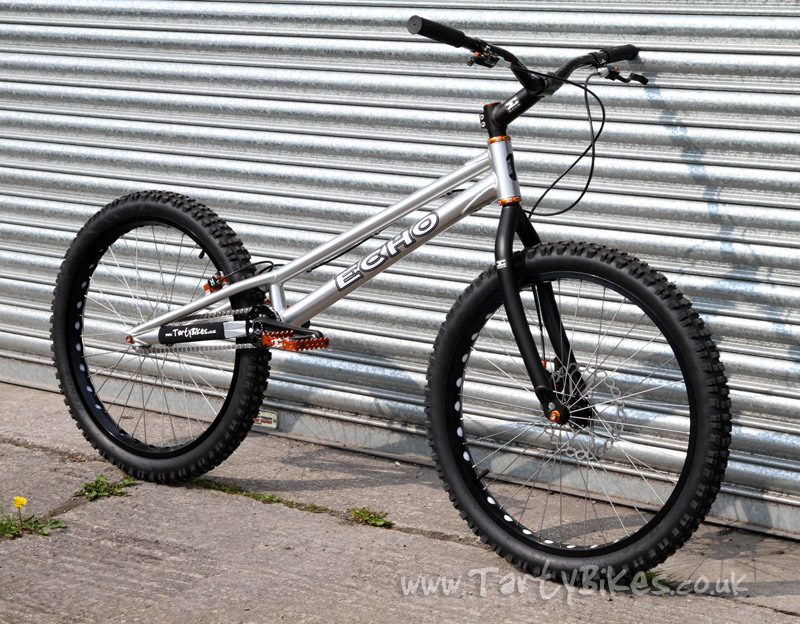

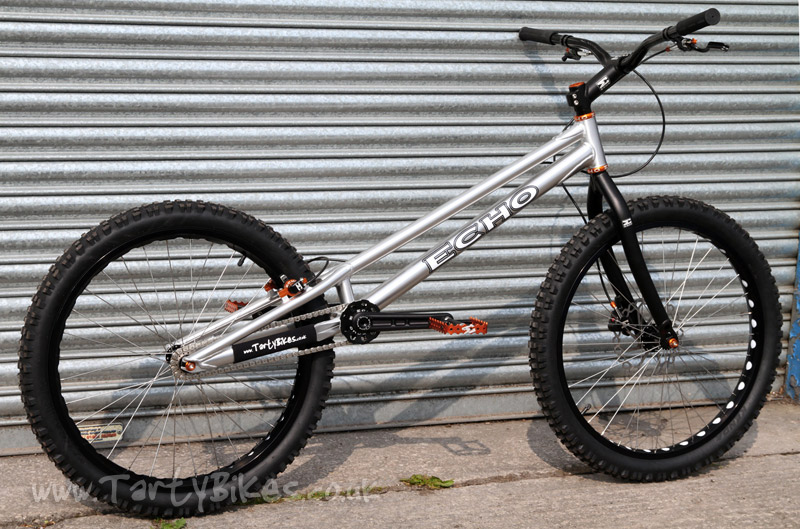

New for 2011, the complete build Echo Trial 2011 bike. Featuring sealed bearing parts throughout, as well as top quality Echo aftermarket parts, this bike is great value for money and features some great attention to detail like colour-matching axle bolt washers and crank bolts.

Please Note: Purchasing this item would ensure a bike as described below is delivered to you. The specification at this price is completely fixed including colours. If you want to change any parts, the only way to do it is to purchase them separately and add them afterwards. We cannot offer any discount for taking parts off the bike.

Frame and Forks

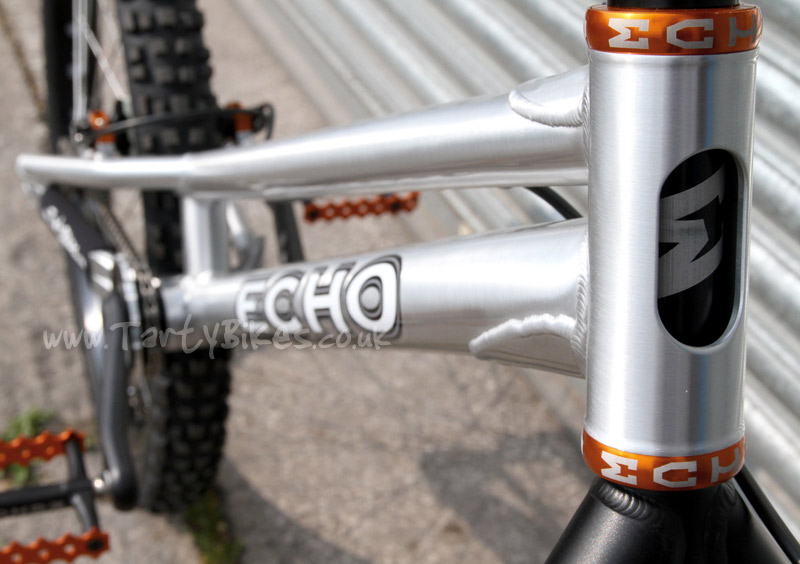

- Frame: Echo Trial 2011
- Forks: Echo SL, Disc Only

Wheels
- Front hub: Echo TR Disc
- Rear hub: Echo TR 116mm
- Front rim: Echo TR
- Rear rim: Echo TR
- Spokes: Plain Gauge
- Rim tape: Echo, white
- Inner tube (front): Echo Unboxed
- Inner tube (rear): Echo Unboxed
- Front tyre: Kenda Kinetics
- Rear tyre: Kenda Kinetics

Brakes - Please view 'Additional Information' for important notes about the brake levers.
- Front brake: Echo TR Hydraulic Disc, 180mm
- Rear brake: Echo TR Hydraulic Rim Brake

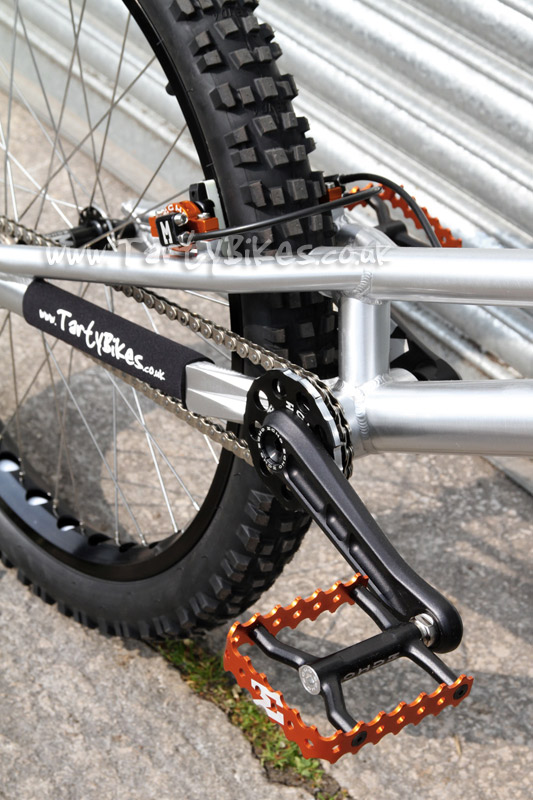

Drivetrain
- Cranks: Echo TR, 170 ISIS
- Freewheel: Echo SL 108, 18t
- Chain: Echo, 3/32"
- Rear Sprocket: Echo TR 14T Screw On
- Pedals: Echo TR Caged, Orange
- Bottom bracket: Echo Urban ISIS, steel axle
- Bashring: Echo Urban, Black

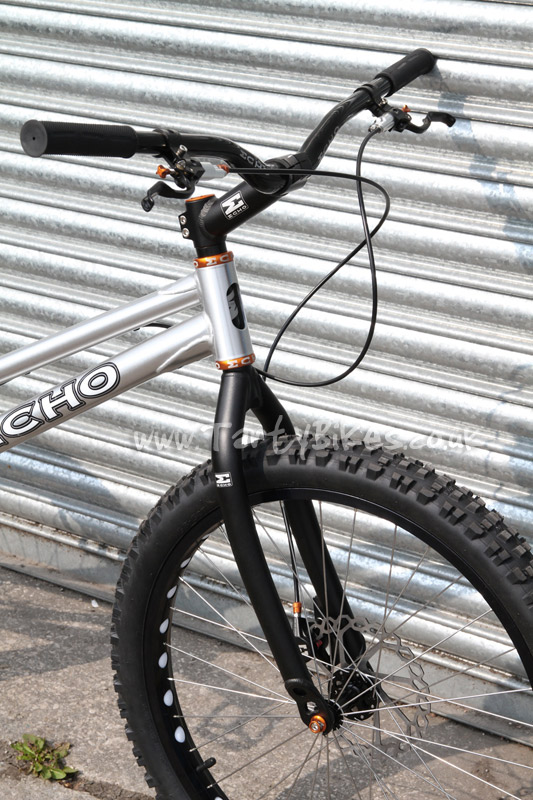

Steering
- Headset: Echo SL
- Stem: Echo TR
- Grips: Echo Rubber, Black
- Handlebars: Echo TR

Geometry:
Wheelbase: 1065mm
Chainstay Length: 360mm
BB Rise: +70mm
Weight: Approx. 9.7kg

This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Details of how to keep the bike in good condition are included on the warranty document supplied. If you need any further information don't hesitate to contact us.

Free Items with this Bike! (Subject to stock availability)

As riders ourselves, we know exactly how to improve standard build bikes to ensure the best possible enjoyment for the rider. Instead of cutting prices, we spend extra time setting the bikes up to a high standard (which takes almost an hour per bike), and we also include the following items free of charge:



TartyBikes T-Shirt: We have Extra Small, Small, Medium, Large and Extra Large available (Men's sizes) in varying colours, click the link to see what we currently have available. Please ensure you specify which size T-Shirt you would like - it's unlikely our guess will be correct!

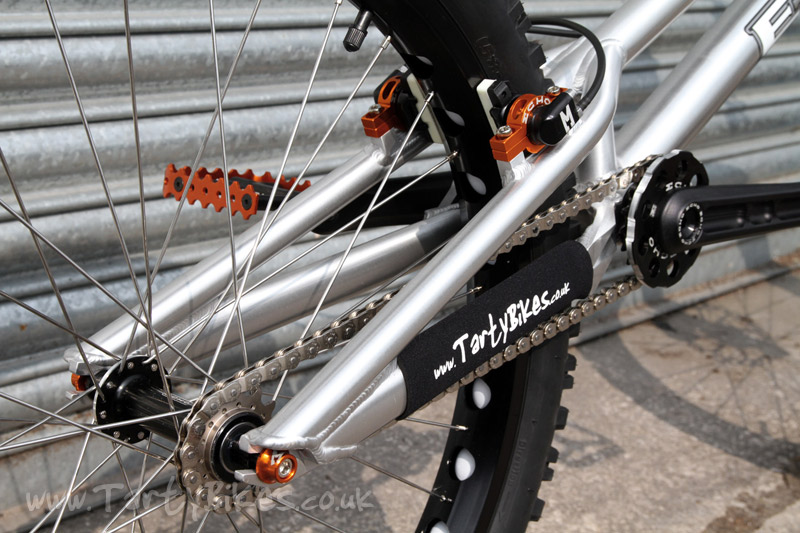

TartyBikes Chainstay Protector: Nifty little device to protect the paintwork on your frame when the chain slaps against it. One logo on each side... choose whichever you prefer!


Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.

---

Very Important Information

In order for correct operation of the brake, you must ensure that the lip seal of the piston is inside the piston bore at all times. This is pre-set by us before dispatch. Failure to do this invalidates the leak warranty on the lever.
