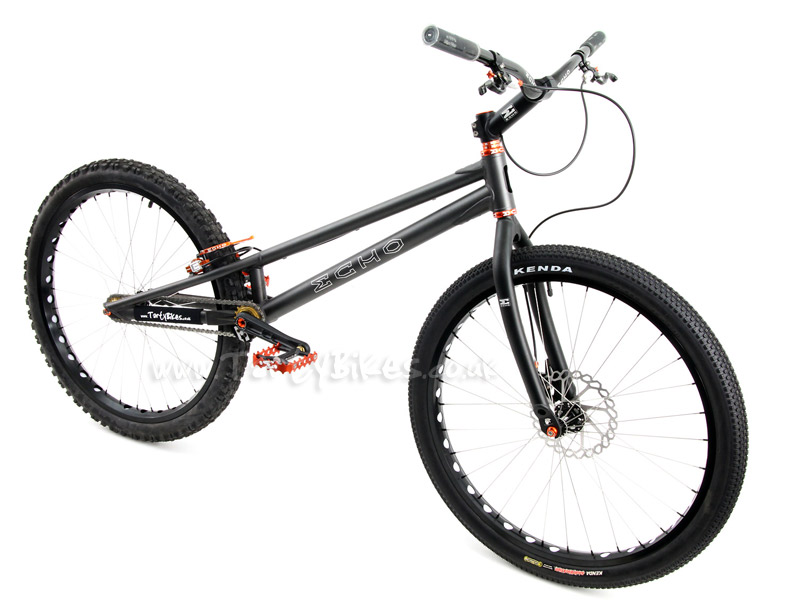

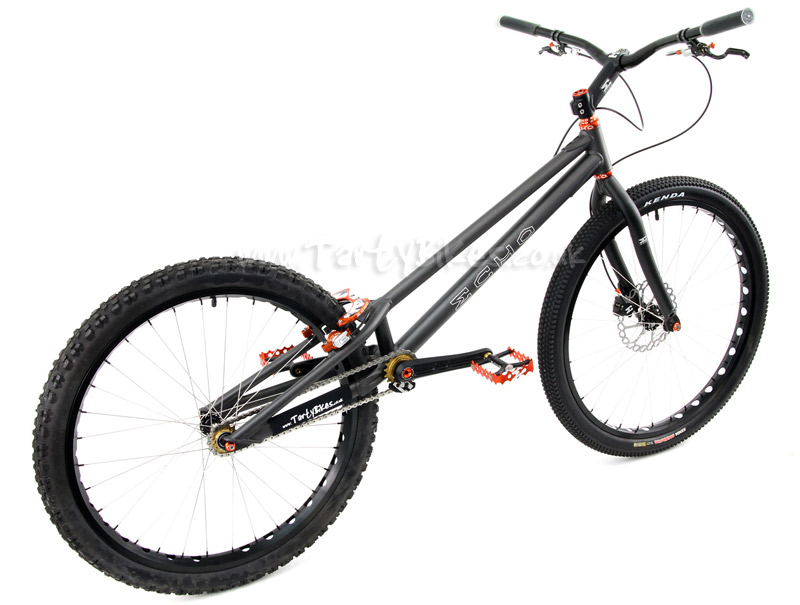

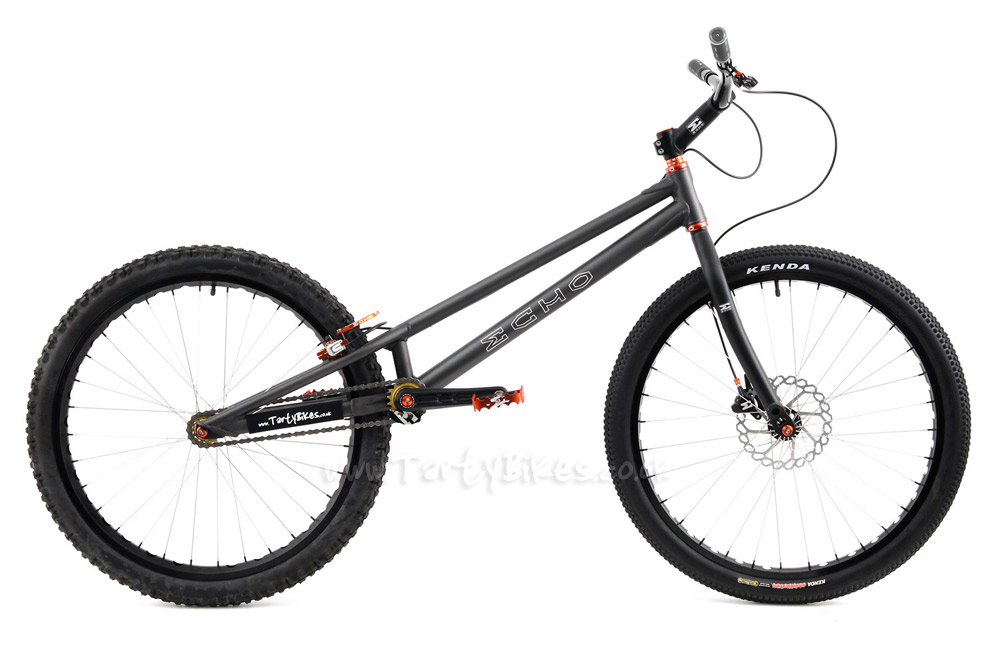

New for 2011, the complete build Echo Pure SL 2011 bike. Featuring top quality Echo aftermarket parts with upgrades such as titanium bolts and alloy nipples, this bike is great value for money and features some great attention to detail like colour-matching axle bolt washers and crank bolts.
Please Note: Purchasing this item would ensure a bike as described below is delivered to you. The specification at this price is completely fixed including colours. If you want to change any parts, the only way to do it is to purchase them separately and add them afterwards. We cannot offer any discount for taking parts off the bike.
Frame and Forks
- Frame: Echo Pure SL 2011
- Forks: Echo SL 2011, Disc Only
Wheels
- Front hub: Echo TR Disc, with Titanium axle bolts

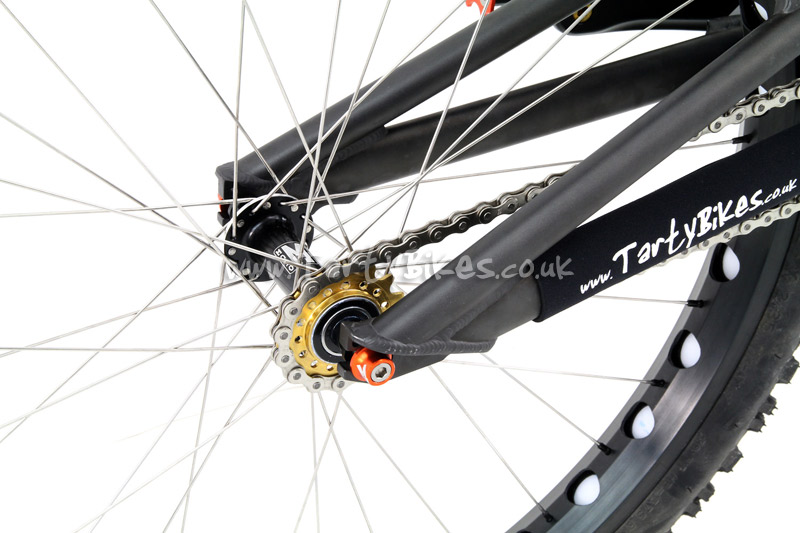

- Rear hub: Echo TR 135mm, with Titanium axle bolts
- Front rim: Echo TR
- Rear rim: Echo TR
- Spokes: Plain Gauge
- Nipples: Echo Alloy
- Rim tape: Echo, white
- Inner tube (front): Echo Unboxed
- Inner tube (rear): Echo Unboxed
- Front tyre: Kenda Small Block 8, 2.1"
- Rear tyre: Kenda Kinetics
Brakes - Please view 'Additional Information' for important notes about the brake levers.

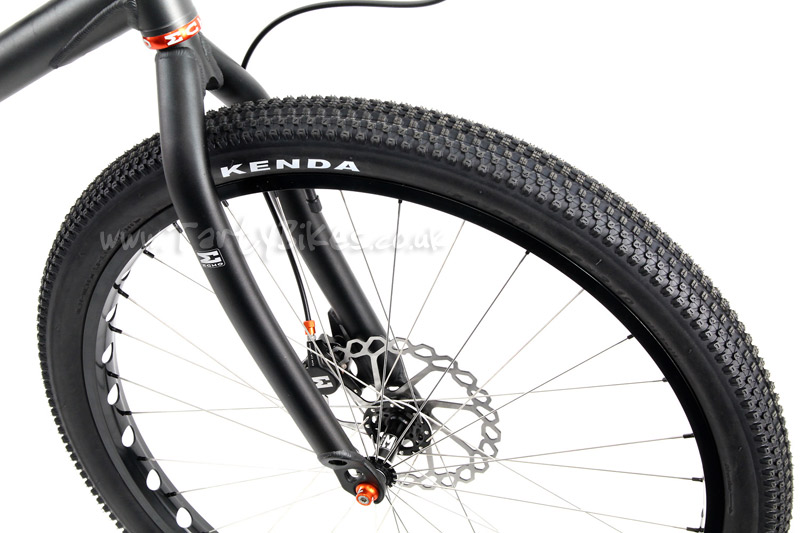

- Front brake: Echo TR Hydraulic Disc, 180mm
- Rotor bolts: Echo Titanium
- Caliper bolts: Echo Titanium

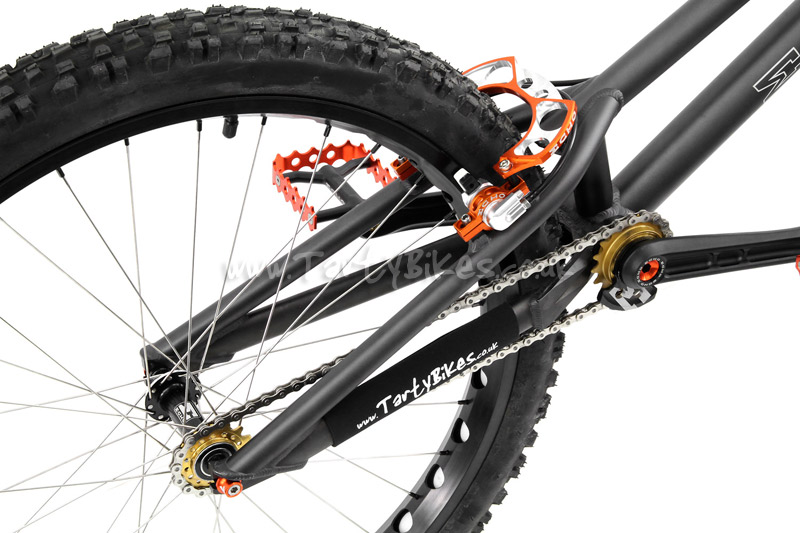

- Rear brake: Echo TR Hydraulic Rim Brake - Now includes Orange Echo SL Booster
- Brake bolts: Echo Titanium
Drivetrain

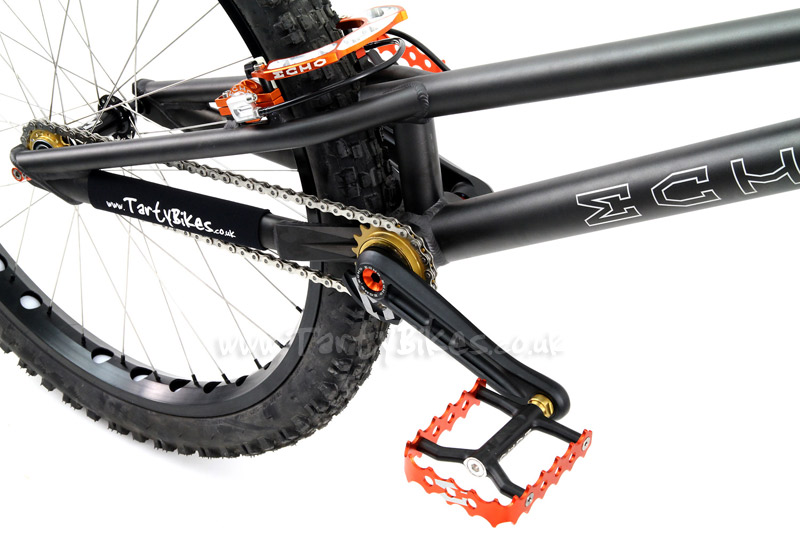

- Cranks: Echo TR, 170 ISIS
- Freewheel: Echo Titanium, 18t
- Chain: KMC Z610 HX, 3/32"
- Rear Sprocket: Echo Titanium 15T Screw On
- Pedals: Echo SL Caged, Orange
- Bottom bracket: Echo Urban ISIS, Titanium axle
- Bashring: Echo SL, Black
Steering
- Headset: Echo SL, with Titanium bolt

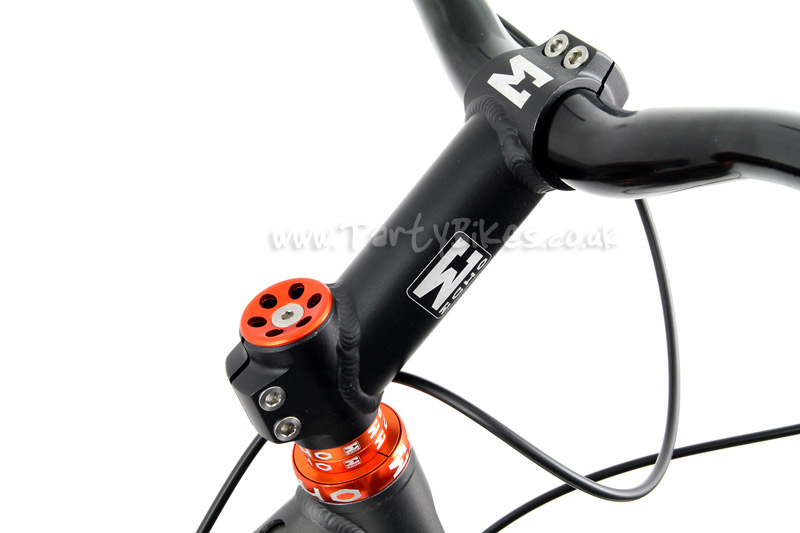

- Stem: Echo TR, with Titanium bolts
- Grips: Echo Rubber, Clear

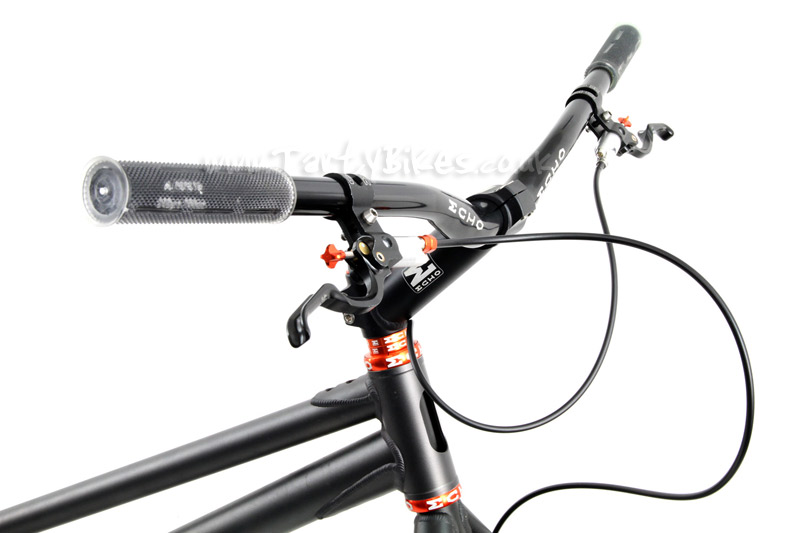

- Handlebars: Echo SL
Geometry:
Wheelbase: 1075mm
Chainstay Length: 380mm
BB Rise: 55mm
Head Angle: 71.5 degrees
Centre of BB shell to top centre of head tube: 655mm
Weight: 9.340kg!
This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Details of how to keep the bike in good condition are included on the warranty document supplied. If you need any further information don't hesitate to contact us.
Free Items with this Bike! (Subject to stock availability)
As riders ourselves, we know exactly how to improve standard build bikes to ensure the best possible enjoyment for the rider. Instead of cutting prices, we spend extra time setting the bikes up to a high standard (which takes almost an hour per bike), and we also include the following items free of charge:
TartyBikes T-Shirt: We have Extra Small, Small, Medium, Large and Extra Large available (Men's sizes) in varying colours, click the link to see what we currently have available. Please ensure you specify which size T-Shirt you would like - it's unlikely our guess will be correct!
TartyBikes Chainstay Protector: Nifty little device to protect the paintwork on your frame when the chain slaps against it. One logo on each side... choose whichever you prefer!
Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.
Very Important Information
In order for correct operation of the brake, you must ensure that the lip seal of the piston is inside the piston bore at all times. This is pre-set by us before dispatch. Failure to do this invalidates the leak warranty on the lever.
Average Rating (Based on 1 customer rating)
You must login and have previously purchased this item to write a review
'A work of art'
Posted by Chris on 20/05/2013
Have a question regarding this product? Then be sure to look through other customer's questions and answers below. If you require any further information, feel free to get in touch.
Ask us a question about this item
Hi all, where to start?! Not been on a trials bike in years, I wasn't sure if i should use this bike or mount it on my wall, as it's a work of art !! The Echo Pure SL is lighter than I'd expected, very easily manoeuvred and comes very well equipped. The rear brake bites very well straight out of the box (with no grind), the front brake still needs 'bedding'/'running'/'broken' in (whatever you want to call it), but i can feel it will be quite sharp once used properly. The delivery was spot on, placed the order on a Monday (i think) i was told both bikes would be built and dispatched by the Friday, then delivered to me on the following Monday... and they were !! Which is good considering where i live is classed as the 'Highlands'. Big Thanks to ALL involved with answering questions over the phone, taking my order and building the bikes, The TartyBikes 'Crew' are very friendly and helpful. Chris
Reply from TartyBikes on 21/05/2013
Hi Chris - It's great to hear you like your new bike, and thanks for the detailed review! The Pure SLs do have a very nice spec, and the finished bikes look great. As you mentioned with the front disc they can take a couple of rides to start bedding in - although it can be tempting to try and bed it in by getting up to speed and dragging the brake to 'scrub' the rotor and pads, getting the brake too hot can glaze the pads over so I'd suggest avoiding that course of action. If you'd like to bed it in a little faster, pouring some clean water over the pads/rotor and then riding along on flat pulsing the brake on and off can help bed them in. If you keep repeating this process (cleaning the water off from time to time with a clean rag/kitchen towel), you'll feel the brake start to bite better.
