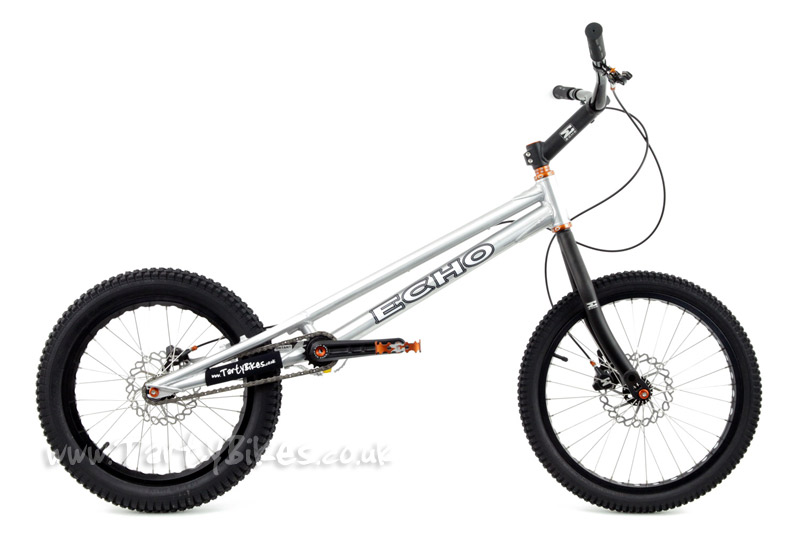

New for 2012, the complete build Echo Lite Dual Disc bike. Featuring sealed bearing parts throughout, as well as top quality Echo aftermarket parts, this bike is great value for money and features some great attention to detail like colour-matching axle bolt washers and crank bolts.
Please Note: Purchasing this item would ensure a bike as described below is delivered to you. The specification at this price is completely fixed including colours. If you want to change any parts, the only way to do it is to purchase them separately and add them afterwards. We cannot offer any discount for taking parts off the bike.
Frame and Forks
- Frame: Echo Lite 2012 (4-Bolt and Disc model)
- Forks: Echo SL, Disc Only
Wheels

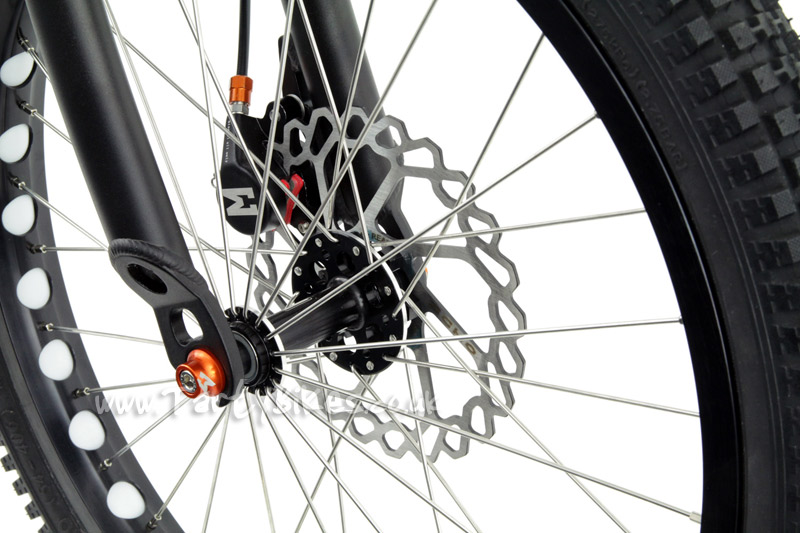

- Front hub: Echo TR Disc
- Rear hub: Echo TR Disc

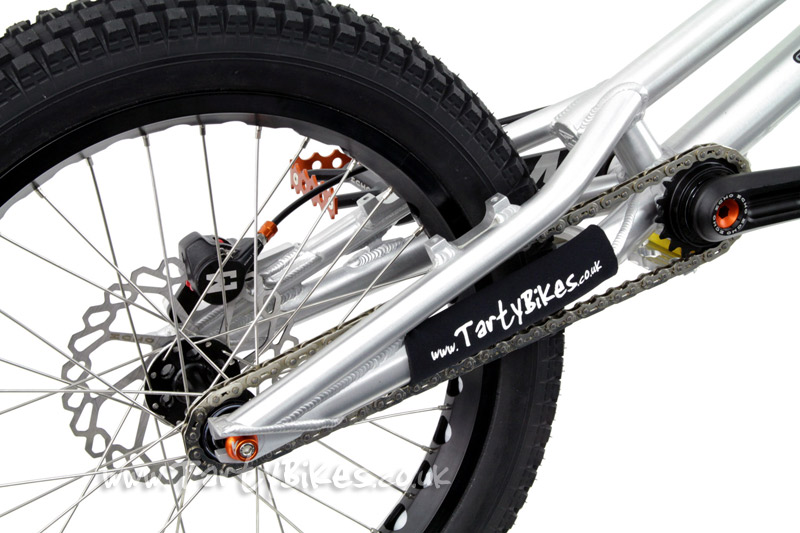

- Chain tensioner: Echo Integrated
- Front rim: Echo TR
- Rear rim: Echo TR
- Spokes: Plain Gauge
- Rim tape: Echo, white
- Inner tube (front): Echo Unboxed
- Inner tube (rear): Echo Unboxed
- Front tyre: Echo SupaTrial
- Rear tyre: Echo SupaTrial
Brakes - Please view 'Additional Information' for important notes about the brake levers.
- Front brake: Echo TR Hydraulic Disc, 160mm
- Rear brake: Echo TR Hydraulic Disc, 160mm
Drivetrain

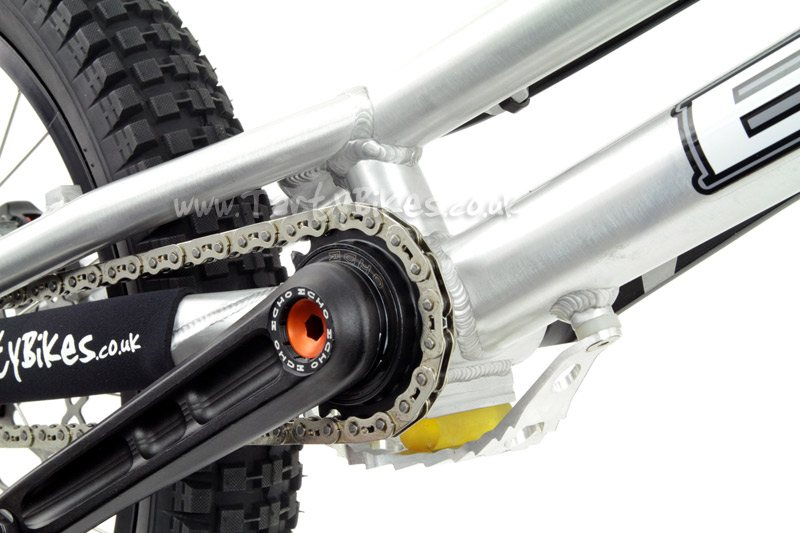

- Cranks: Echo TR, 160 ISIS
- Freewheel: Echo SL 108, 18t
- Chain: Echo Half-Link,. 3/32"
- Rear Sprocket: Echo TR 12T Screw On
- Pedals: Echo TR Caged, Orange
- Bottom bracket: Echo Urban ISIS, steel axle
- Bashplate: Echo SL, Silver

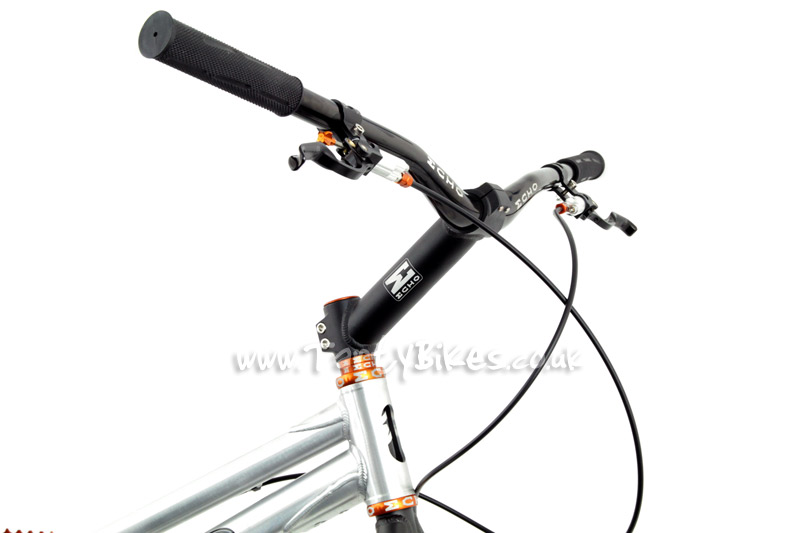

Steering
- Headset: Echo SL
- Stem: Echo TR
- Grips: Echo Rubber, Black
- Handlebars: Echo TR
Geometry:
Wheelbase: 1000mm
Chainstay Length: 350mm
BB Rise: +85mm
Weight: Only 9.26kg including pedals!
This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Details of how to keep the bike in good condition are included on the warranty document supplied. If you need any further information don't hesitate to contact us.
Free Items with this Bike! (Subject to stock availability)
As riders ourselves, we know exactly how to improve standard build bikes to ensure the best possible enjoyment for the rider. Instead of cutting prices, we spend extra time setting the bikes up to a high standard (which takes almost an hour per bike), and we also include the following items free of charge:
TartyBikes T-Shirt: We have Extra Small, Small, Medium, Large and Extra Large available (Men's sizes) in varying colours, click the link to see what we currently have available. Please ensure you specify which size T-Shirt you would like - it's unlikely our guess will be correct!
TartyBikes Chainstay Protector: Nifty little device to protect the paintwork on your frame when the chain slaps against it. One logo on each side... choose whichever you prefer!
Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.
Very Important Information
In order for correct operation of the brake, you must ensure that the lip seal of the piston is inside the piston bore at all times. This is pre-set by us before dispatch. Failure to do this invalidates the leak warranty on the lever.
Average Rating (Based on 4 customer ratings)
You must login and have previously purchased this item to write a review
;)
Posted by ewen on 03/09/2011
My Review.
Posted by dean on 19/09/2011
Great bike, easy to handle!
Posted by Anton on 09/03/2012
Echo Lite Dual disks
Posted by Benjamin on 13/03/2012
Have a question regarding this product? Then be sure to look through other customer's questions and answers below. If you require any further information, feel free to get in touch.
Ask us a question about this item
Show more questions… (15 remaining)
This is my third bike :) but my first with dual disk and i must say i'm impressed ,, the geo is great for me at 5'4" tall brakes seem very well but seem to slip a bit probably due to them not bedding in yet ? , probably the best thing though apart fom how smooth it rides is the freewheel / chain set up its amazing ! faster than my mountain bike ! thanks tarty !
Reply from TartyBikes on 05/09/2011
Hi Ewen - I'm glad you like the bike! It's fairly normal for the discs to 'slip' a little when they're bedding in. Once everything's settled down though it should be much better. As with all new bikes I'd recommend making sure everything's kept tight for the first few rides as most parts will tend to bed in a little and loosen off a touch - if you keep on top of that basic maintenance then the bike should last you a long time. Thanks, Mark
