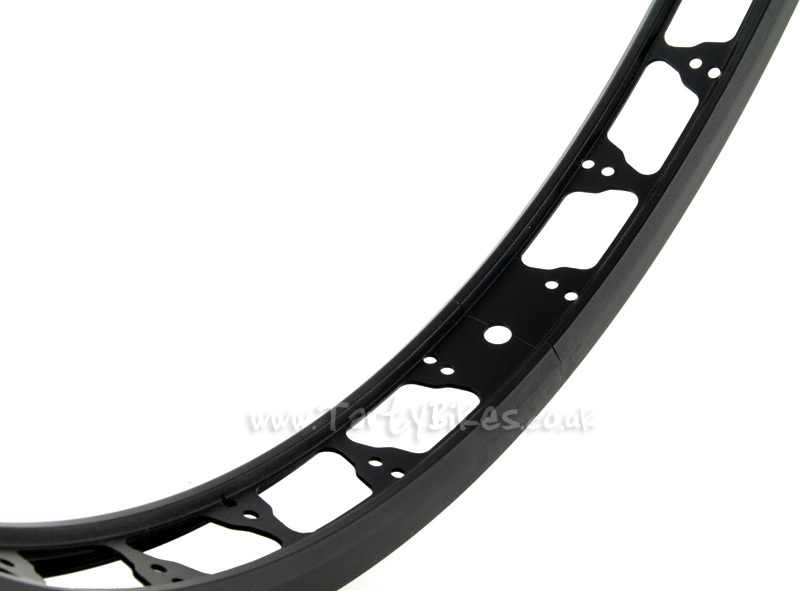

- Ultra-wide trials specific rim from well-known trials company Try-All.
- Tested and used by some of the worlds top riders!
- 48mm wide profile gives un-paralleled anti-roll performance, even at the lowest of pressures.
- Un-eyeletted construction saves over 50g when compared with eyeletted rims.
- Single wall extrusion with custom shaped holes provides substantial weight saving.
- Please note: When lacing this rim into a wheel, the outer spoke holes must be used.
- Available in 32h only, in Black.

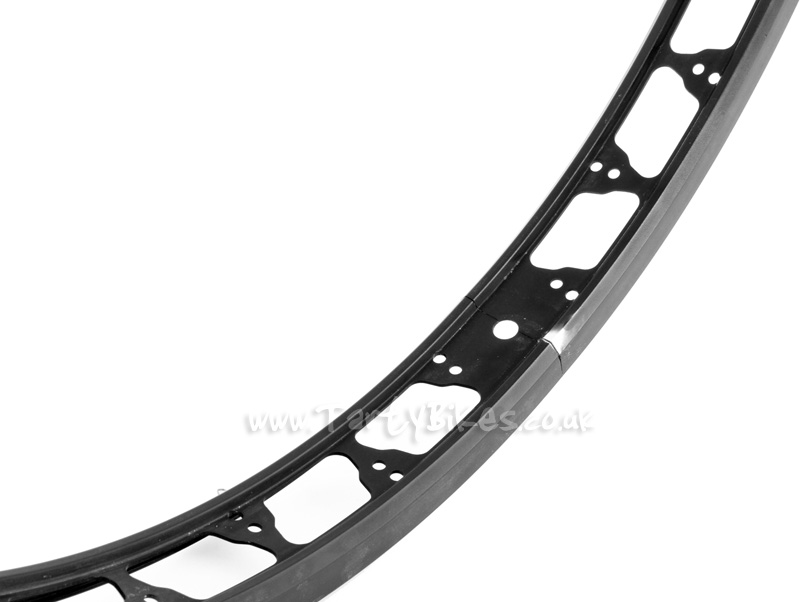

- All rims feature some scuffs / blemishes in the anodising - this is reflected in their discounted price. Some rims may also show a slight gap in their join, although this will pull together when built. The additional image shows the 'worst' rim, so it's most likely any rim you receive will be better than this.
- Weight: 568g
- ERD: 550mm, spoke hole offset 12mm (for spoke calculation subtract 12mm from hub offsets).
- Tested and used by some of the worlds top riders!
- 48mm wide profile gives un-paralleled anti-roll performance, even at the lowest of pressures.
- Un-eyeletted construction saves over 50g when compared with eyeletted rims.
- Single wall extrusion with custom shaped holes provides substantial weight saving.
- Please note: When lacing this rim into a wheel, the outer spoke holes must be used.
- Available in 32h only, in Black.
- All rims feature some scuffs / blemishes in the anodising - this is reflected in their discounted price. Some rims may also show a slight gap in their join, although this will pull together when built. The additional image shows the 'worst' rim, so it's most likely any rim you receive will be better than this.
- Weight: 568g
- ERD: 550mm, spoke hole offset 12mm (for spoke calculation subtract 12mm from hub offsets).
Bonz Expert Non Disc
£31.67
Try-All Sloping Top Cap
£5.00
Trialtech Sport Magnesium
£46.67
Echo Pure 2013
From £215.83 to £249.17
Magura HS33 2011, no brake clamps, with shroud nut and olive
From £62.50 to £112.50
RockMan Green
£13.33
KMC Z610 HX, 3/32"
£11.67
Echo Titanium
£108.33
Try-All Expert ISIS
From £31.66 to £33.33
Save up to 5%
I would like to know the size of spokes for this rim with the Try-All K2 Rear Hub H116 32h with 3 crosses. Thank you
Posted by Chus Medrano on 11/06/2013
Reply from TartyBikes on 12/06/2013
Hi Chus - You would need 266mm spokes, both sides. Thanks, Mark
