TartyBikes : ZOO! Piranha 2012 (With BB)

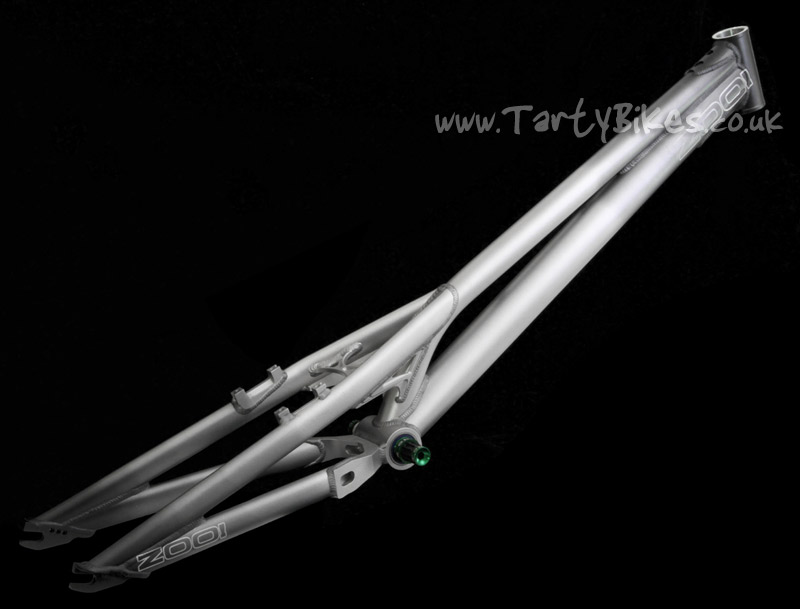

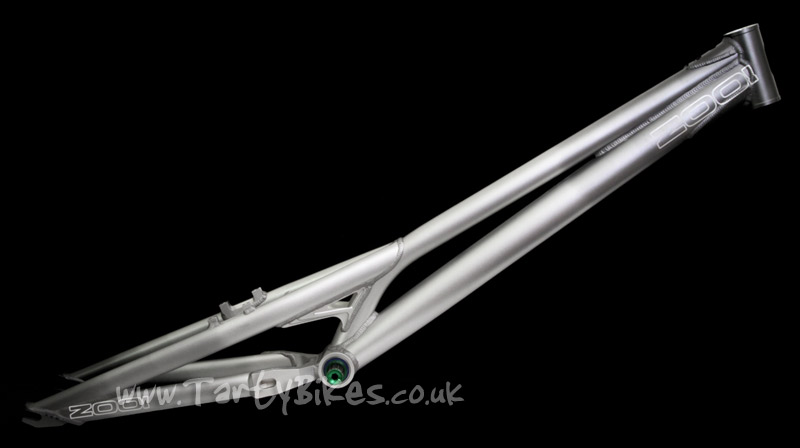

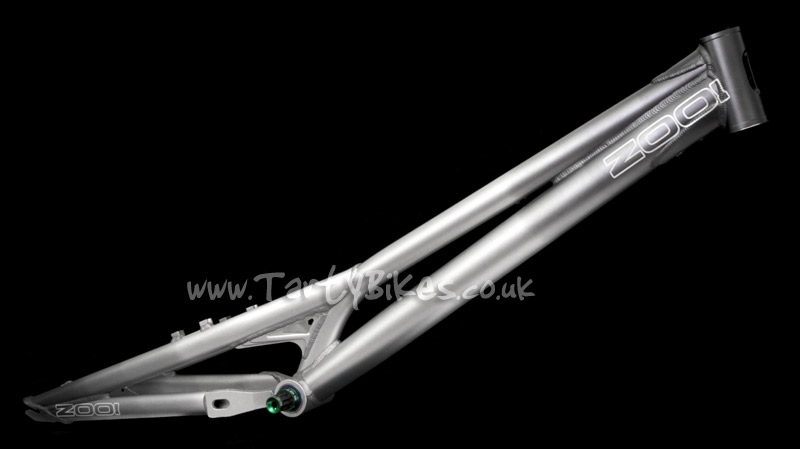

- Updated for 2012, the ZOO! Piranha frame.
- Features Echo's 'Spanish' BB system, which uses a large press-fit bearing - this gives a longer BB life, whilst still using a strong M15 ISIS spindle. BB is supplied with the frame!

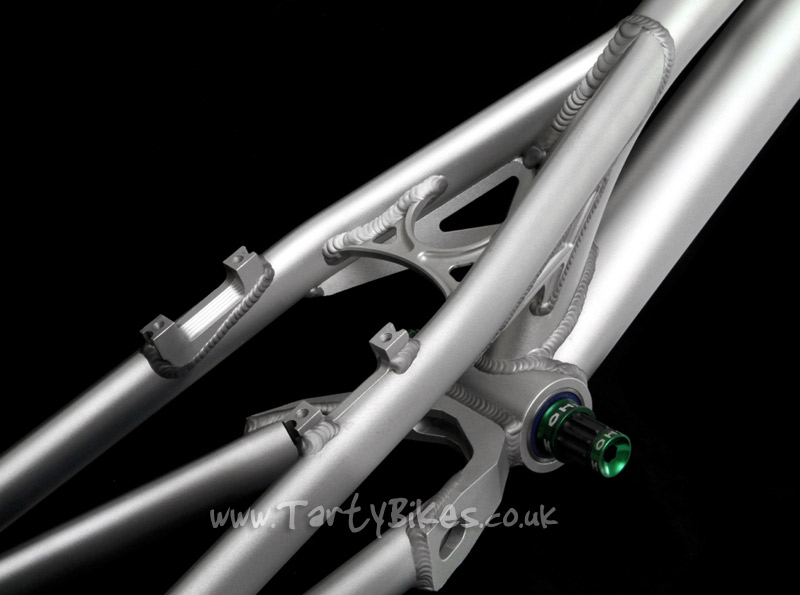

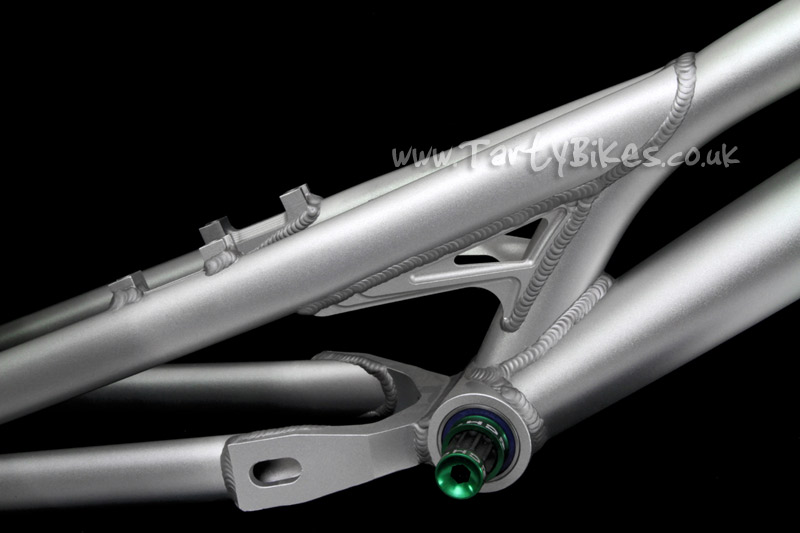

- Large, CNC machined BB yoke increases weld contact area at this crucial join, increasing the strength of the frame.
- Curved top tube mimics the Piranha's traditional style, but incorporating the CNC machined side plates as featured on the ZOO! Pitbull frames.

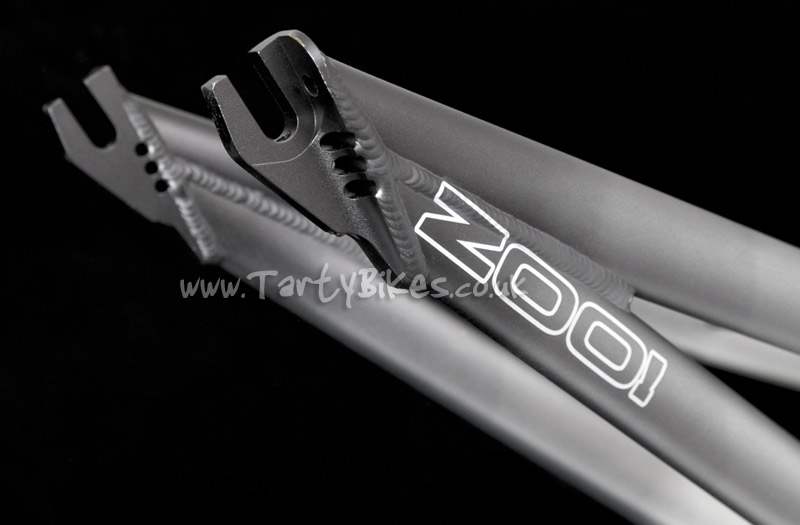

- Neat, CNC machined horizontal dropouts spaced at 135mm feature a low-profile integrated tensioner design, as seen on the previous Czar 24" frame.
- Standard head tube (100mm long) has a large hole machined out to reduce weight.

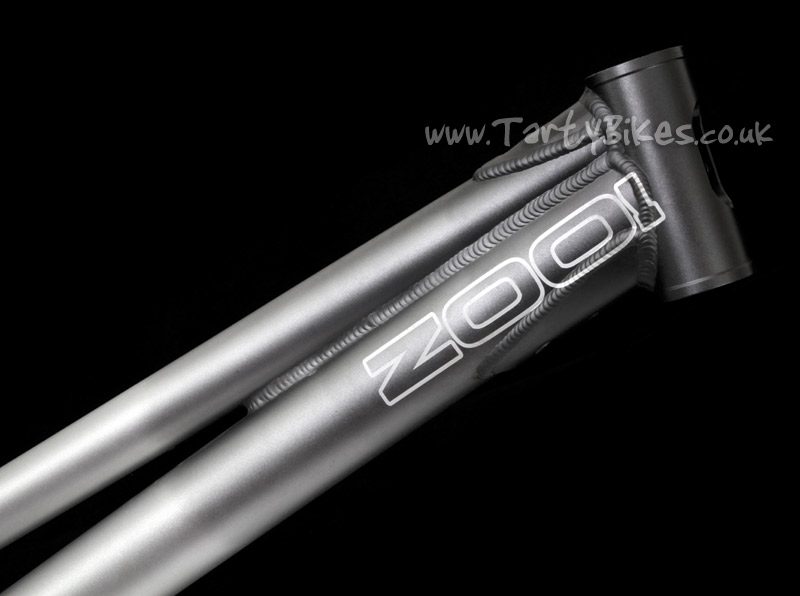

- Top and down tube gussets at the head tube direct stress away from the ends of the tubes, improving frame life.
- Supplied with dedicated 4-bolt mounts spaced at 100mm.
- Available in silver/black anodised finish only, with classy laser etched ZOO! logos.
- Weight: 1.751kg (Without BB), 2.003kg (With steel BB).

Geometry (When measured with Echo Urban fork, sold separately):

This frame comes with a 6 month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any warranty claim.
