TartyBikes : ZOO! Lynx 2012 (With BB)

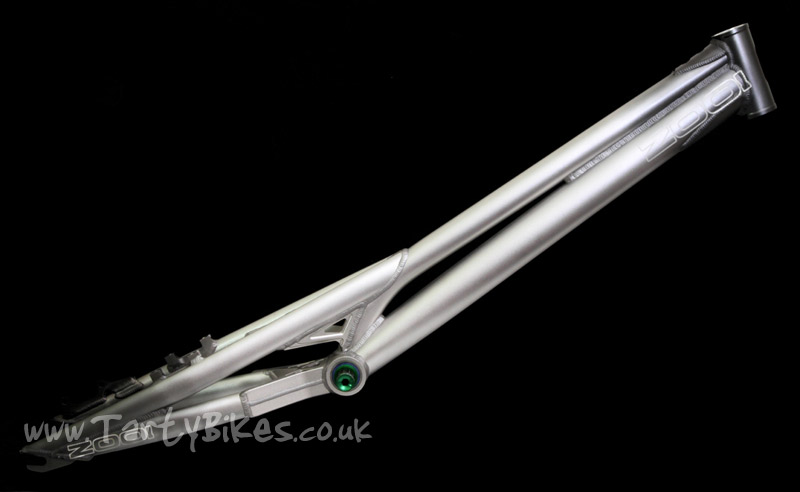

- New for 2012, the ZOO! Lynx frame.
- Features Echo's 'Spanish' BB system, which uses a large press-fit bearing - this gives a longer BB life, whilst still using a strong M15 ISIS spindle. BB is supplied with the frame!
- Curved top tube mimmicks the Lynx's traditional style, but incorporating the CNC machined side plates as featured on the older ZOO! Python frames.
- Neat, CNC machined horizontal dropouts spaced at 116mm feature a low-profile integrated tensioner design, as seen on the previous Czar 24" frame.

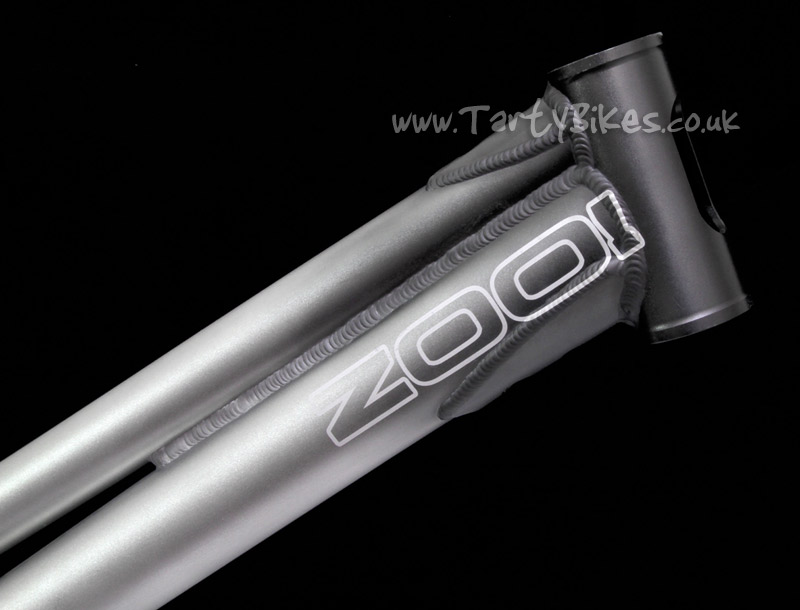

- Standard head tube (104mm long) has a large hole machined out to reduce weight.
- Top and down tube gussets at the head tube direct stress away from the ends of the tubes, improving frame life.

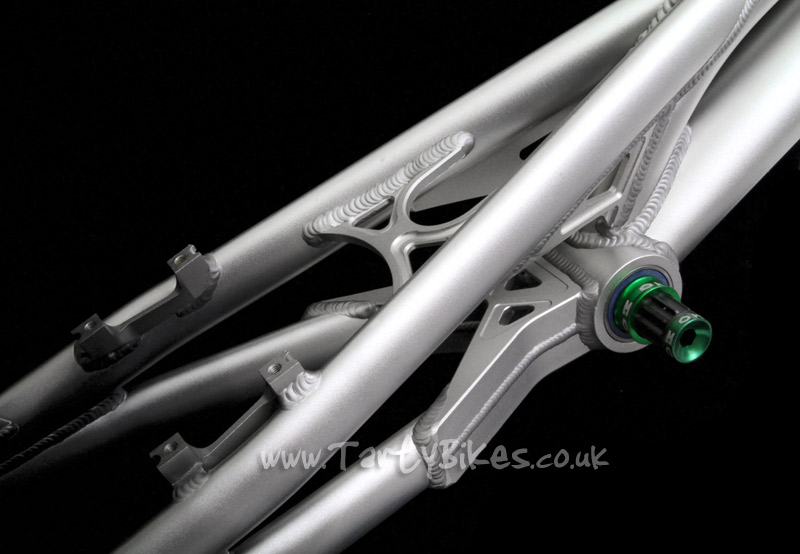

- 2-piece CNC machined BB yoke gives great tyre and freewheel clearance, and helps keep weight to a minimum whilst still giving a large weld contact area.

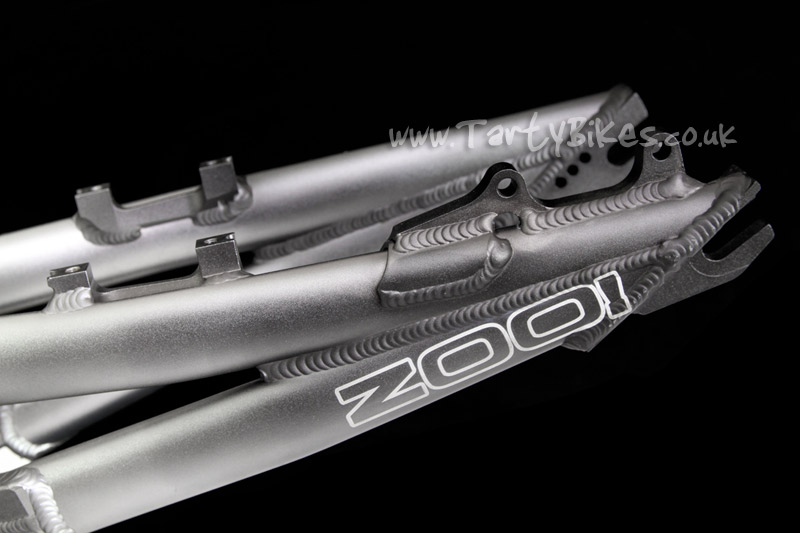

- Supplied with dedicated 4-bolt mounts spaced at 99mm also have a reinforcing plate to help increase brake stiffness.
- Features a heavily braced International Standard disc mount.
- Available in silver/black anodised finish only, with classy laser etched ZOO! logos.
- The Lynx frame does not feature a bashplate mount, so a bashring is recommended.
- Please note: Some frames may have some light marks in the anodising around the top and bottom of the head tube. These are reflected in the discounted price of the frame, and do not affect the frame's strength or warranty in any way.
- Weight: 1.643kg (Without BB), 1.895kg (With steel BB).

Geometry (When measured with Echo Urban fork, sold separately):

Wheelbase: 1005mm
Chainstay Length: 362mm
BB Rise: 70mm
Head Angle: 71.5 degrees
Centre of BB shell to top centre of head tube: 595mm

This frame comes with a 6 month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any warranty claim.
